Online Key Matching for 2018 VW Sagitar’s All Key Lost

Fault：All keys of the vehicle are lost so that re-matching car keys & remotes.

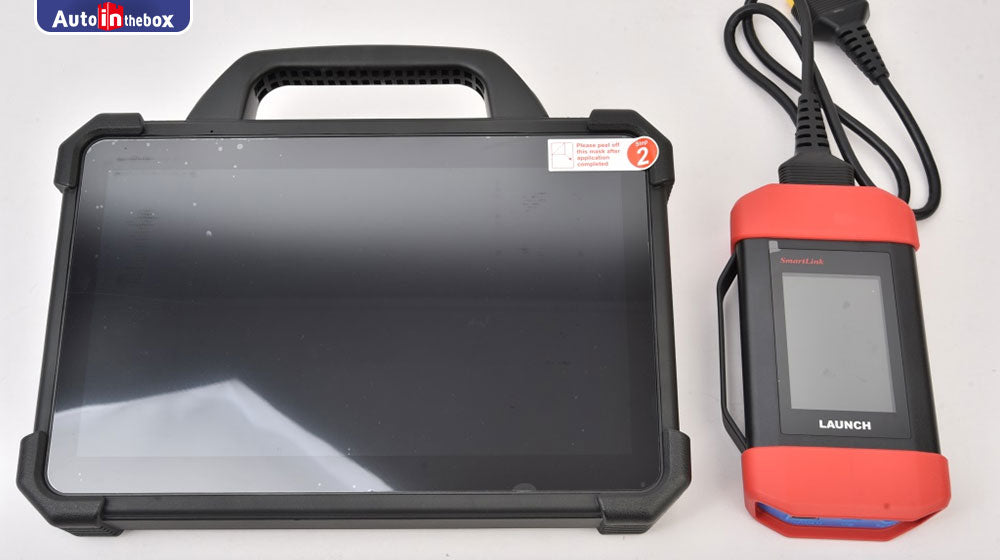

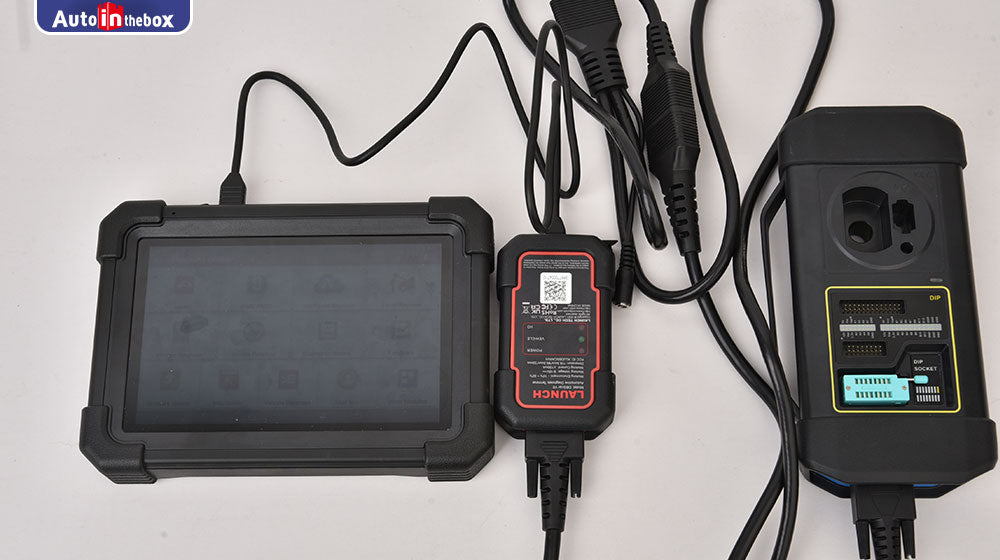

Applicability：X-431 IMMO ELITE+ X-PROG3

Detected Car Model：VIN= LFV2A21K4J405****

Caveats：

1. X-431 IMMO ELITE is connected to WIFI
2. The battery voltage is above 12.1V
3. Get one or two smart remote controls ready

Operation Steps:

• Choose VW Immobilizer, then Choose Omline key matching.

• Choose 4th Generation CAN Instrument.

• Choose All keys are lost.

• Turn on the hazard warning indicator according to“Please turn on the hazard warning indicator!”.

• Please be patient, when “reading the anti-theft data…”，some car models require longer duration.

• Press comfirm to enter when read the vehicles’ Immobilizer date (VIN, CS, and PIN).

• Press Yes when “generate dealer key or not?”shows.

• Press NO

• Press Confirm to generate Dearler Key.

• Place a Blank Key into the Anti-Theft Key Matching Adaptor, then press OK

• Choose VW to check the outcome

• Dealer Key is generated; click Yes to continue, if you need to learn multiple keys, otherwise click No.

• Hint “generate dealer key completed”.

• Press yes when Hint “Is the current key a smart key?”

• Key in volumes when “Please input the number of keys to be learned”.

• Choose VW

• Carefully Read :Click “ok” after placing the first key on the position of vehicle key induction coil,It may cause learning failed if other keys are too close to the coil,and follow the instructions

• Carefully Read:Click “ok” after placing the next key on the position of vehicle key induction coil,It may cause learning failed if other keys are too close to the coil,and follow the instructions

• Hint read immobilizer data、generate dealer key and lean key succeeded.

• Operate the remote control button to check the door lock motor works normally; Start the engine to check the engine landing is normal, which indicates that the smart key is successfully matched.
