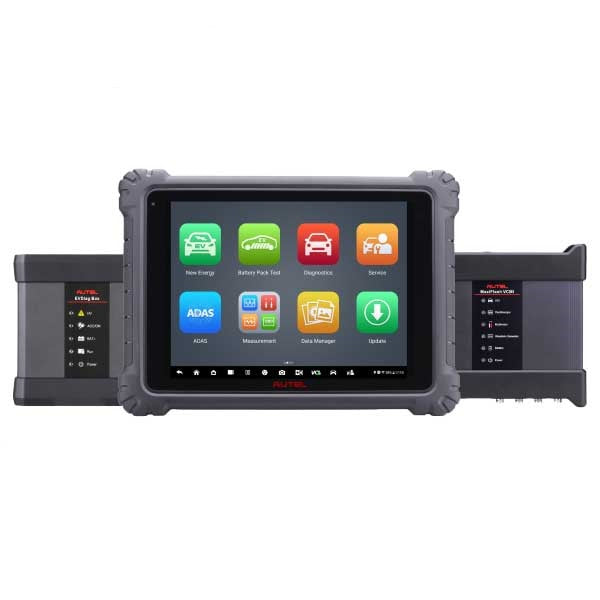

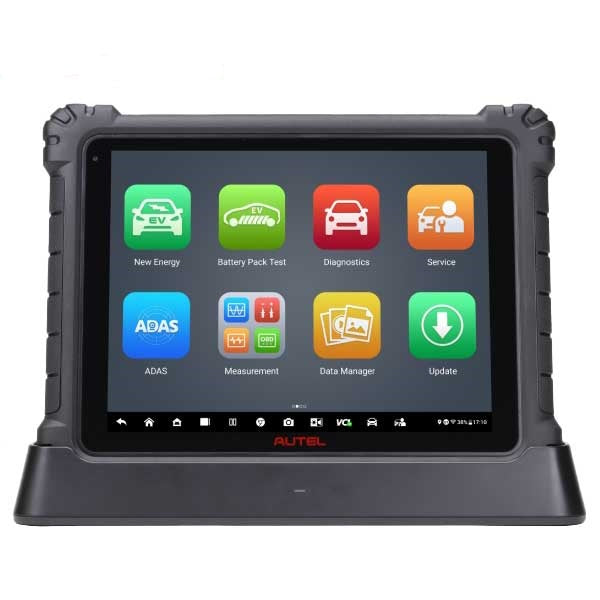

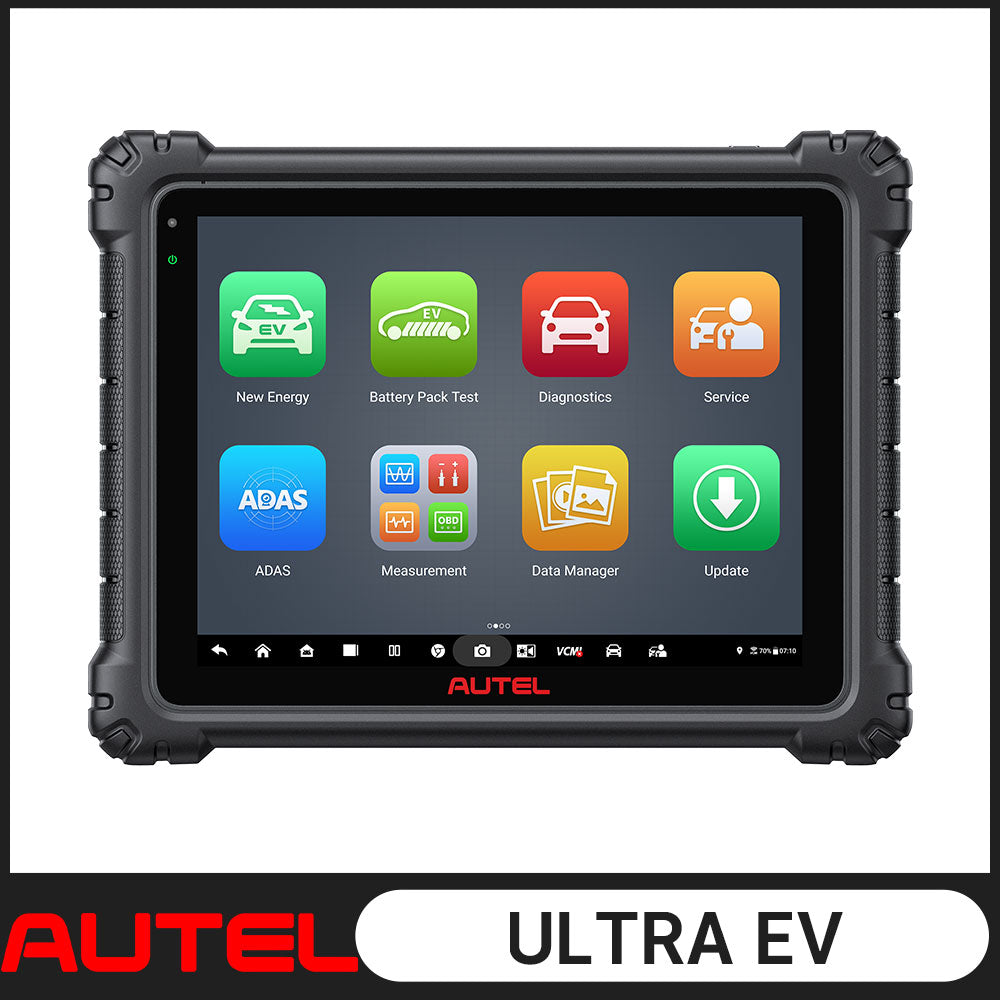

Autel MaxiSYS Ultra EV Diagnostic Tool


  • Only Shipping to USA
  • Upgraded from Autel MS909EV/Ultra/MS909/MS919/Elite
  • 5-in-1 VCMI, 40+ Services
  • Offline Battery Pack Diagnostics
  • ECU Coding & Programming


Regular price Save -2% $4,299.00 $4,399.00
Regular price $4,299.00

997 100 99
Notify Me

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
Print

Description

Autel Maxisys Ultra EV 2023 Intelligent EV Diagnostics Tool

Ultra EV adds EV diagnostics, offline battery pack diagnostics, and high voltage system testing to Ultra's already robust diagnostic capabilities. Maxisys Ultra EV integrates programming, coding, intelligent diagnosis, VCMI, 40+ reset service, split screen, and multi-tasking operation, and the scanning tool is undoubtedly a diagnostic solution for electric vehicles. Autel Maxisys Ultra EV makes the diagnosis of Tesla, BMW, Volkswagen, and other electric vehicles no longer a challenge. High-voltage system diagnosis, one-key read/clear code, display SOC, SOH, voltage, battery pack status, and help locate faults. EV provides high-voltage system block diagrams, parts diagrams, plug-in diagrams, disassembly guides, etc., making the operation easier. Autel Ultra EV scan tool also provides offline battery pack diagnostics to ensure the efficient completion of every battery installation.

autel ultra ev scanner

Why is The MS Ultra EV Appealing? -The Most Powerful Scanner with the Highest Investment potential

Autel MS Ultra EV adds an EVDiag Kit to Ultra, making the scanner possible to diagnose new energy vehicles, including Tesla, BMW, VW, Au-di, etc. This automobile diagnostic scanner combines together almost every high-end diagnostic feature you can think of, bringing repair stores more orders.

Top-level diagnostic tool, upgraded version of MS909/MS909/MS908S PRO/MK908P/ELITE



  • Advanced ECU Coding & Programming:¬†Program, rewrite, code, and match new ECU after new module replacement. Code cars to unfold hidden features and activate high-end functions to improve vehicle performance.
  • Expanded Compatibility:¬†Support CAN-FD, DoIP bus protocol, D-PDU, J2534, RP1210 diagnostic standards.
  • 5-in-1 VCMI:¬†Perfectly integrates 5 powerful devices into one scanner, saves not only your effort but also thousands of costs.
  • Intelligent Diagnostics: Offer unique Repair Assist, DTC analysis, TSBs, Repair Tips, etc., giving repairers unprecedented convenience.
  • Topology Mapping:¬†Provides a color-coded topology display for all vehicle systems' relationship on one page, helping you better analyze the system faults.
  • Pre & Post Scan:¬†Makes it easy to document the vehicle's pre-repair and post-repair condition for insurance adjusters and service managers.
  • 40+ Service Functions:¬†Contains the most comprehensive services on 98% of vehicles.
  • 10+ New Features:¬†Support wider vehicle coverage, more frequent updates, WIFI print reports, Pre & Post scan, FCA & Renault SGW, report management, remote expert (* Sending us an SN code is required for us to add you to our whitelist and enable this feature.) and extended features such as battery test and Videoscope (with MV105/108). ÔĀ¨Enhanced Remote Expert: The remote expert adds DoIP protocol, making the model coverage wider; the server and point-to-point dual-channel connection method makes the network more stable and reduces communication delay. The scanner also supports protocols auto recognition, diagnostic reports import, and several communication methods such as audio and video for smoother communication.
  • Wide Vehicle Coverage:¬†Covers the most complete vehicle makes and models (updates to 2022 newest models).

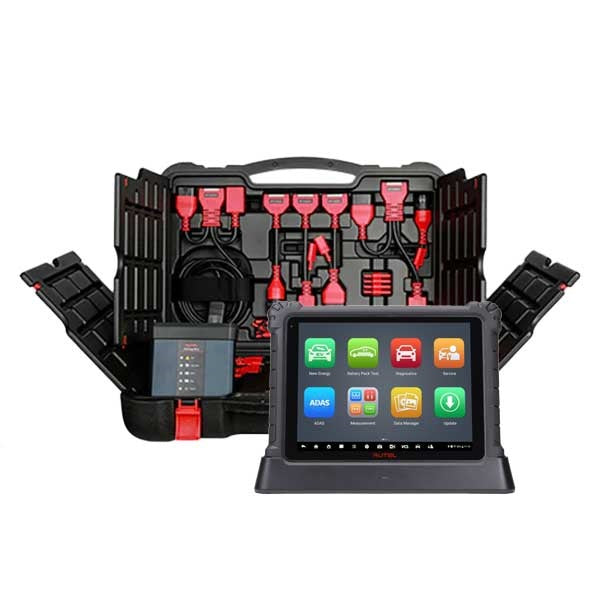

EV Diagnostics Upgrade Kit



  • The kit includes EVDiag Box, leads, and adapters for specific electric vehicles to perform battery pack analysis, and high-voltage system diagnostics.
  • The EVDiag Box is compatible with the MaxiSys Ultra, MS919, and MS909 tablets. If you already own one of these scan tablets, you can purchase the upgrade software and activate the EV diagnostic functions with EVDiag Box.



Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

Autel MAXISYS ULTRA EV SCANNER

Autel Ultra EV: Revolutionary Solution for EVs

Why Autel has Developed Special Diagnostic Tools for New Energy Vehicles?



  • The car structure of EVs is different from f-uel cars:¬†Unlike f-uel vehicles, the problems of new energy vehicles are not scattered among the various systems but are mainly focused on the electronic control system and the battery. Traditional diagnostic scanners are unable to conduct comprehensive problem troubleshooting for electric vehicles.
  • Traditional scanners cannot diagnose EVs:¬†They cannot diagnose the high-voltage system of EVs; obtain detailed information on each module of the battery pack and locate faults, or diagnose electric control modules such as motors.
  • Insufficient experience in EV diagnostics:¬†Due to the high technical requirements for mechanics and the danger of the operation, there are currently few mechanics who can perform the diagnostics for EVs. Our scanner Ultra EV, as an expert, can provide video graphics as well as guidance and safety tips for you.
  • In this way, we have developed the EV box and a set of adapters to meet the diagnostic needs of new energy vehicles, diagnose the high-voltage system and perform battery pack analysis.



How can Ultra EV help you with new energy vehicles diagnostics?

Display an all-in-one status of the battery pack's State of Charge (SoC), State of Health (SoH), overall voltage and temperature, and a detailed analysis of each battery module.

Battery pack maintenance recommendations are provided based on the monitoring of voltage averages and differences as well as the maximum and minimum voltages of the battery module.

One-stop information source for all these vehicles with detailed battery information, including battery brand and module locations, and system block diagram with component introduction and connection, socket diagram, and disassembly guides.

In-depth safety information and step-by-step inspection guidance to ensure technicians can diagnose, service, and repair these vehicles safely and efficiently.

Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

Autel MAXISYS ULTRA EV SCANNER

ECU Programming & ECU Coding & 40+ Special Functions‚Äď Multiplying Repair Store Revenue

Autel Ultra EV is the upgraded version of MS909/MS909/MS908S PRO/MK908P/ELITE. The car scanner provides you with nearly the same coding and programming functions as original diagnostic devices for some automotive brands. Ultra EV, as the top-notch scan tool, solves programming, coding, and matching puzzles for various vehicles. It is designed to be your benefits maker.



  • ECU Programming: Autel Ultra EV scan tool enables users to program replaced new ECUs; download the latest version of the software and reprogram ECUs; backup and restore lost data on ECUs. A series of on-screen operational instructions will display to guide you through the programming procedure.
  • ECU Online Coding:¬†Online coding is supported for Ben-z, B-M-W, A-udi, Porsche, VW, etc. This feature can be used to write the new code to the ECU after replacement, get the replaced parts known by other ECUs, and customize the setting of vehicles to achieve car personalization, such as controlling auto side mirror folding, turning on/off auto engine start-stop, customizing the daytime running lights, auto-lock/unlock function, and so on.
  • Support¬†D-PDU/J2534/RP1210 Diagnostic Standards:¬†VCMI adds support for these protocols, allowing connection to factory diagnostic scanners for diagnostics and ECU programming.
  • 40+ Special Resetting Functions:¬†The Ultra EV is Autel‚Äôs m-ost ambitious diagnostics tablet designed to maximize intelligence. In this case, we have added almost all the usual special functions to this scanner, and made the functions the same as the OE scanners, so that all technicians can easily reset and match the component for more than 10,000 vehicles. With the software update, we will continue to add more functions for more vehicles.



Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

Autel MAXISYS ULTRA EV SCANNER

Intelligent Diagnostics & VCMI

Intelligent Diagnostics, Liberate Hands and Brain, Increase Efficiency by 100%

Ultra EV can be your expert assistant, simplifying your diagnostic work and advising you on repairs.

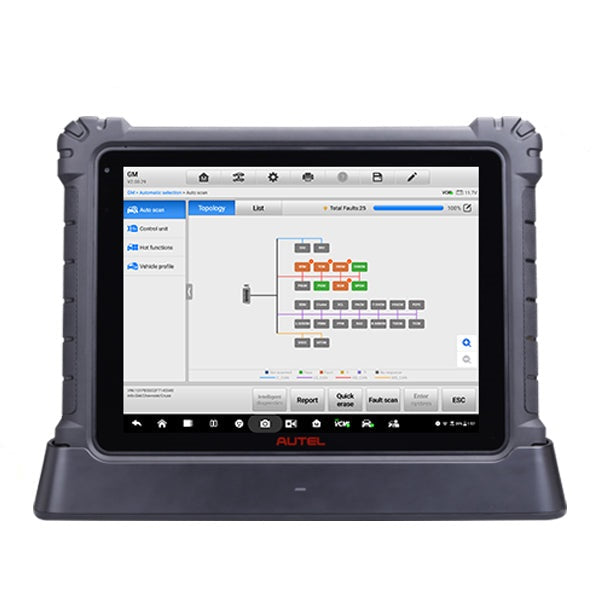

  • Autel exclusive system topology software: A color-coded topology display for all vehicle systems and their status on one page. The module status and ECU connection are shown in the tree clear and cut.
  • OE Technical service bulletin (TSB): Offer official statements issued by vehicle manufacturers regarding problems including vehicle modules, DTCs, repair methods, program updates, and recall strategies. Currently available on Ford, GM, FCA, Toyota, Lexus, VW, N-issan, Honda, BMW, Mercedes, Au-di, Hyundai, and Kia.
  • Repair Assist: Provide recommended tests and a step-by-step guide to fix vehicles‚Äô faults.
  • DTC Analysis: describes possible causes and solutions for vehicle faults. Currently available on GM, Ford, Toyota, Lexus, N-issan, Honda, VW, Au-di, BMW, FCA, and Mercedes.
  • Relevant Cases: offer relevant fault-clearing cases for repair reference.
  • VCMI Combines Oscilloscope, Waveform, Multimeter, and CAN Bus in One



The new MaxiFlash VCMI (Vehicle Communication and Measurement Interface) integrates those specialty functions into one: oscilloscope, waveform generator, multimeter, and digital OBDII breakout box.



  • Oscilloscope: measures voltages of electrical systems. Various signal activities can be displayed and monitored on a two-dimensional grid. Ultra EV software provides a large library of preset guided tests and an extensive waveform library, to ensure techs get the best use of the Oscilloscope.
  • Waveform Generator: tests sensors, actuators, or ECUs without the need to replace them. It will simulate signals of various sensors and ECUs, and identify hardware issues. For instance, the VCMI can simulate sensor signals to diagnose ECU, sensor, and wiring harness; verify the functionality of the Electronic fan, solenoid valves, etc.; and test the communication status between the actuator and ECUs (Electronic fan, solenoid valve, headlight).
  • Multimeter: measures voltage, current, resistance, frequency, diode, duty cycle, pulse width, and continuity test.
  • Bus Inspection: performs OBD-related functions and signal detection. Check whether the control units in the vehicle's electronic control systems work properly with the indicator light according to the condition of sending out the communication signals.



Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

autel ultra ev

Autel Ultra EV: Continuously Update Features, Ease Maintenance Work

To keep pace with the increasingly updated and diversified diagnostic needs of modern vehicles, Autel values feedback and needs, and constantly develops new features to meet them. In 2023, the following features were added or enhanced.



  • Topology Mapping:¬†Today's vehicles have become sophisticated computer networks on wheels. With the Ultra, the diagnostic process could be much easier. Topology is to show the layout, design, and behavior of data bus configurations, help you have a clear picture of vehicle status; and give the OE data and processing suggestions.
  • Pre-Post Scan Report & Wi-Fi Print:¬†It can generate pre- and post-diagnostic reports to more clearly show the repair situation and help car owners to facilitate the insurance claims. Autel Maxisys Ultra EV supports printing reports directly from any page, click the "Print" and get them right away.
  • Use with MV105/108 & BT506:¬†The scanner can connect with the Autel endoscope (MV105/108) for inside vehicle parts and other confined place inspections such as HVAC, vent pipe, engines, air conditioners, sofa corners, etc. It can also connect BT506 for battery tests.
  • Remote Expert:¬†Allows technicians to get help from experts anytime, anywhere. P2P direct connection allows automatically selecting of the best quality network to ensure stable and smooth remote operation; IM instant communication ensures no barriers to communication between the expert side and the technician side. * Note: Send us the SN code to get this feature activated.
  • Cloud Report Management:¬†You can upload and share reports by scanning the QR code, and sending SMS and e-m-ails. You can print the diagnostics reports out wirelessly for more convenient operation.
  • FCA AutoAuth & Renault Gateway:¬†Further expand the compatibility. Allow users to access SGW Secure Gateway on 2018 and newer FCA vehicles, and Renault vehicles and performs diagnostics and special functions.



Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

ultraev autel diagnostic scan tool

Wide Compatibility & Superior Hardware

Cover 10,000 Vehicles All Over the World



  • Car Coverage: We understand how important compatibility is for large garages, so we are constantly developing new models to make the diagnostic scanner available to serve as many models as possible. Autel Ultra EV, our high-end diagnostic device, covers a complete range of car models. Whether the car diagnosed is an Asian, European, or American brand, Autel Ultra EV can handle them. A total of 85+ makes, 140+ brands, and 10,000+ models are covered. Eg: it supports OE diagnostic tools for Land Rover, Jaguar, Volvo, Toyota, GM, Honda, N-issan, BMW, BENZ, VW, Hyundai, Kia, Mazda, Mitsubishi, Chrysler, etc.
  • 13+ Languages: English, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, etc.



Offer 5 Times Faster Operating Speed



  • Samsung Exynos 8895V processor¬†and Android 7.0 OS bring smooth and swift operating and diagnostic experience, increasing speed by 5 times.
  • 128GB memory¬†provides more space for you to store important files and records.
  • 18000mAh¬†super battery allows for continuous working for more than 10 hours.
  • 12.9 inches 1536*2048¬†screen allows you to see more at a glance and see the contents more clearly.
  • Support both¬†Bluetooth and WIFI¬†to make the connection more convenient.



Autel MAXISYS Ultra EV: 2023 New Energy Vehicle Scanner

Autel MAXISYS ULTRA EV SCANNER

Autel MAXISYS ULTRA EV SCANNER

Autel MAXISYS ULTRA EV SCANNER

Active Test:

The Autel Ultra EV auto scan tool works as a transmitter to send the commands to ECUs and conduct mutual communication with the vehicle sub-systems and components to quickly locate the problems of components, such as windscreen wipers, windows & doors, sunroof, injector, mirrors, parking brake, radiator fan, f-uel pump, vehicle level position, etc. Active test function shortens the diagnostic time and saves you from messy vehicle diagnostics.

Split-Screen Display:

Saves the hassle of switching back and forth between multiple interfaces and allows technicians to test different data on one screen at the same time for easy comparison and analysis, ensuring smoother diagnostic work.

The Trend of New Energy Vehicles:

Thirty-three electric models were released this year, and automakers like General Motors have plans for all-electric vehicle lines by the start of the next decade. By 2030, 22 million EVs are projected to be on American roads. Despite the increasing popularity of electric vehicles, there are relatively few diagnostic devices on the market for electric vehicles. So, it's the perfect time for technicians to get a diagnostic scanner for new energy vehicles.



Specifications
Downloads
  • Ultra_EV_Quick_Guide.pdf   Download
  • MaxiSys Ultra EV User Manual.pdf   Download
