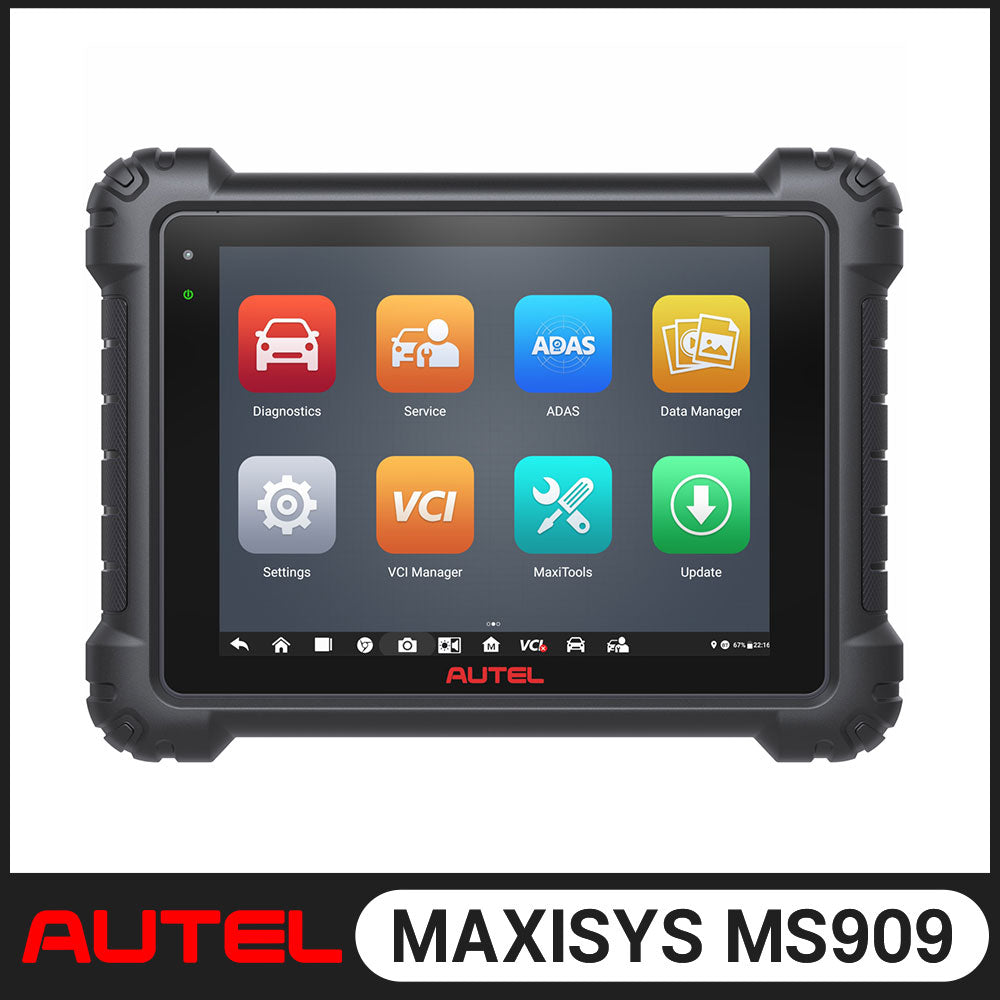

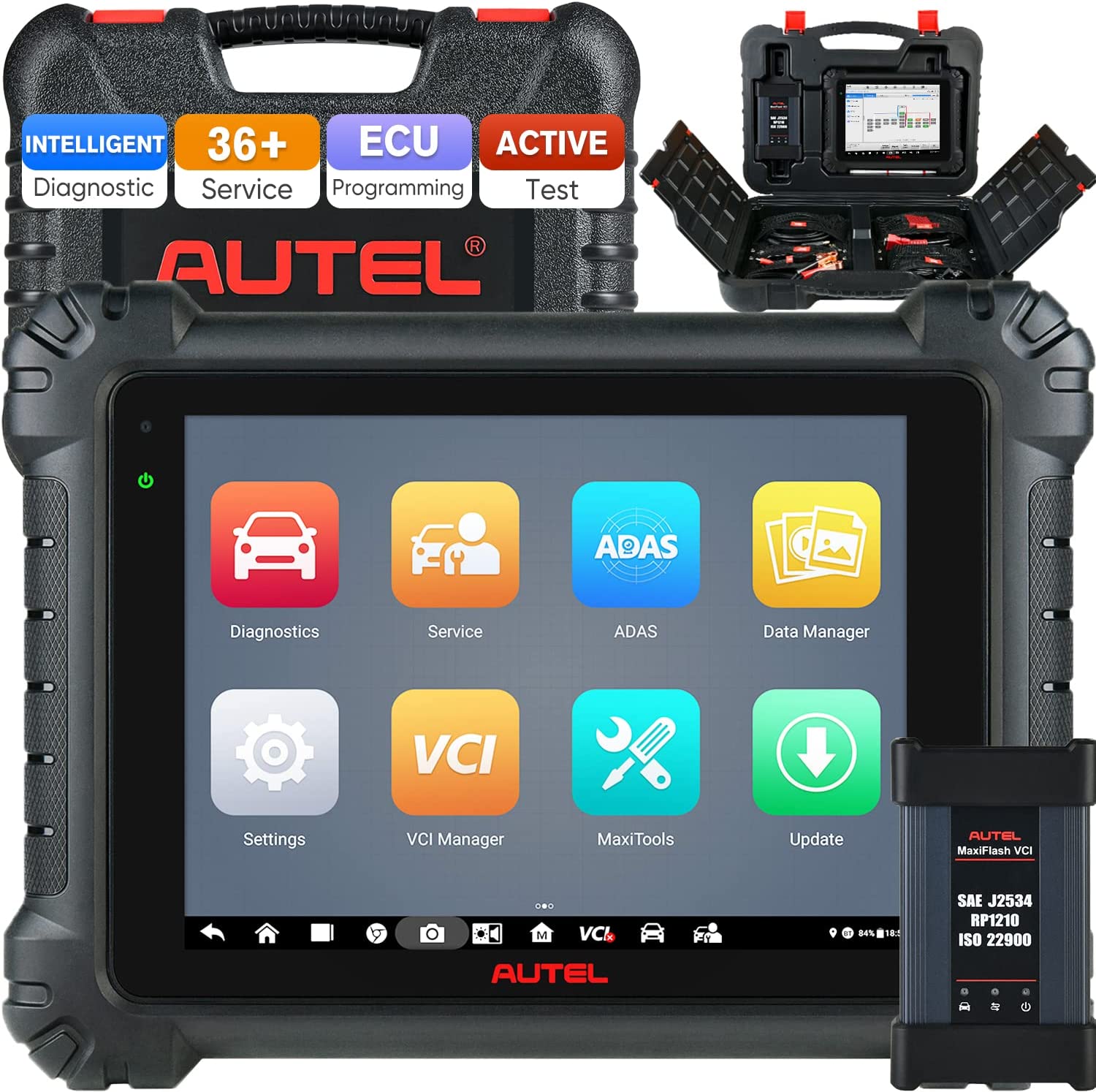

Autel MaxiSys MS909

Autel MaxiSys MS909 Diagnostic Tool

Autel MS909 scanner is a smart scan tool that scans all the available systems to pinpoint problems and integrates versatile diagnostic functions to serve 10000+ vehicle models worldwide. Diagnostics, 36+ diagnostic functions, and active test mostly simplify the diagnostic process, which makes you complete the diagnostics and repair quickly and easily.

Q: What are the differences between the Autel MS909, MS908S Pro, Elite, MS919, and Ultra?

A: There are important differences between these similar Autel car scan tools.

Overall by diagnostic function, it is Autel Ultra =MS919 =MS909 > Elite>MS908S Pro.

As to selling money, it is Autel Ultra > MS919 > MS909 > Elite>MS908S Pro.

Undoubtedly, MS909 scanner is the most cost-effective diagnostic tool among this five one, and it is only slightly different from Ultra and MS919 in terms of software function and hardware configuration. Compared to MS908S Pro and Elite diagnostic tool, MS909 scan tool features more functions like diagnostics, ECU programming, software updating, etc.

J2534 Online Programming: Replace the existing software/firmware and program new ECUs, to fix software-controlled driving performance and emission issues (SAE J2534-1 & J2534-2). Compatible with BMW and Benz.

Personalization: Reflash the hidden features according to your likes. Compatible with VW, Audi, BMW, Toyota, Chrysler, Jeep, Fiat, Nissan, etc.

Online ECU Coding: Obtain the online data from the server, fast code your car, and no need for manual inputting code. Compatible with VW, BMW, Audi, Seat, Porsche, etc.

Component Matching: Match new ECU module with on-board systems and make the car running smoothly. Compatible with VW, Audi, Skoda, Seat, Ford, Opel, Mazda, Chrysler, Jeep, Honda, Nissan, Hyundai, Kia, Subaru, Mitsubishi, etc.

Online Account Login Service: Help you skip passwords and access the operating authority directly. Compatible with VW, Audi, Skoda, Seat, etc.

VAG Guided Function: Give on-screen OE-level operating instruction for some complicated functions to simplify the diagnostic process and shorten the diagnostic time. Compatible with VW, Audi, Skoda, Seat, etc.

Online Calibration: Connect the server online to perform a special adjusting function. Compatible with VW, Audi, Skoda, Seat, etc.

2023 Advanced Scanner Autel MaxiSys MS909

2023 Advanced Scanner Autel MaxiSys MS909

ECU Programming & ECU Coding

ECU Programming: Replace the existing software & firmware in the ECU and program new ECUs. Fix the vehicle drivability, fuel efficiency, power loss, fault codes, and durability issues. Allow you to perform J2534 programming on Benz / BMW.

Online ECU Programming: For Benz / BMW ONLY

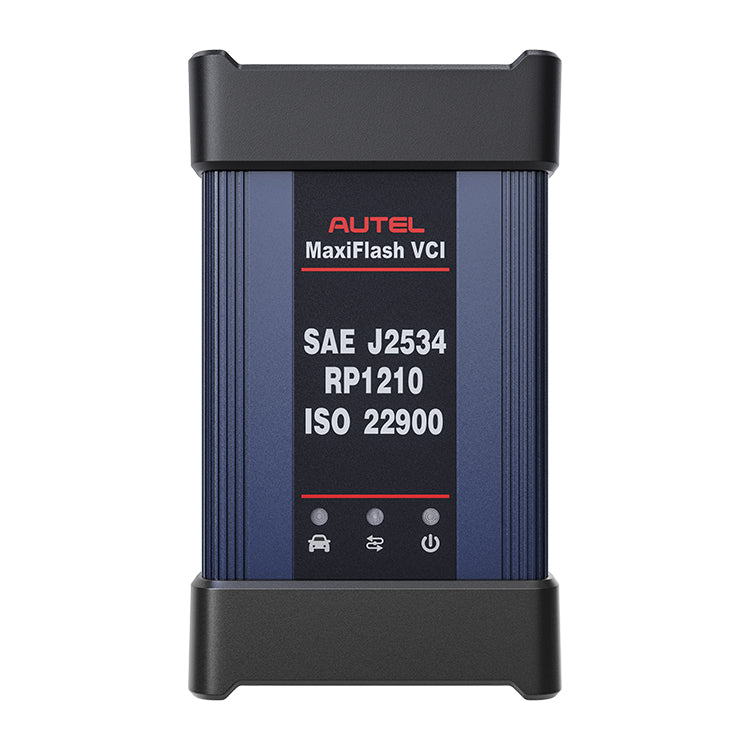

J2534 ECU Programming: For makes and models supporting the J2534 protocol (original manufacturer’s programming applications needed).

Note: When reprogramming onboard, please make sure the vehicle battery is fully charged.

ECU Coding

Allow you to refresh the hidden features, customize the OE settings and enhance the vehicle performance, fuel efficiency, and reduce power loss. Compatible with Volkswagen, BMW, Seat, Porsche, Renault, etc.

Online ECU Coding: Obtain the online data from the server without matching ECU manually and code the car easily via the Internet to solve the car’s problems.

Note: ECU Coding is NOT universally compatible. Please check compatibility with us before purchase.

Smooth the Process, Smart Your Life

MS909 automotive scanner can also generate a topology tree intuitively presenting full system diagnostic results in different colors and make you know the communication structure between the modules. Compatible with VW, Audi, BMW, Ford, Land Rover, Jaguar, Chrysler, Fiat, and Volvo.

Autel MaxiSys MS909 Car Diagnostic Tool

36+ Maintenance Functions Take Care of All the Vehicles

MaxiSys MS909 scan is designed with 36+ service functions to meet various diagnostic needs and provide more help to vehicles. MS909 diagnostic scanner can perform Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration, Throttle Matching, Suspension Calibration, Trans Adaptation, ABS Bleeding, BMS Reset, TPMS Reset, Headlamp, IMMO Keys, Seat, Odometer, Lang Change, TEC Learn, A/F Setting, Airbag, Win DR Roof, Battery Replacement, Zero Point Calibration, Weight Sensors Calibration, VGT Turbo Calibration, Injector Coding, Idle Relearn, Power Balance, ECU Coding, VAG Guided Function, etc.

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.

EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.

DPF Regeneration: Perform the regeneration procedure as know as the DPF cleaning operation to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.

Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.

ABS Bleeding: Bleed the air of a brake system to restore ABS brake sensitivity.

BMS Service: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

TPMS Reset: Quickly look up the tire sensor IDs from the vehicle’s ECU, and perform TPMS replacement and sensor test.

Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.

IMMO Keys: Disable the lost vehicle keys and program a new replacement key fob.

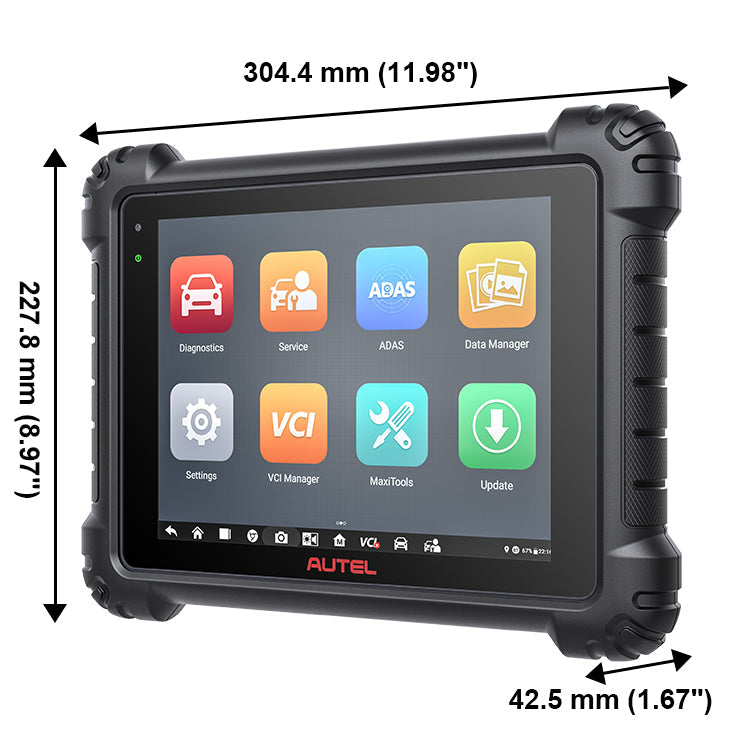

MS909 scan tool is configured with Android 7.0 OS, octa-core processor(2.3GHz+1.7GHz), 128GB built-in memory, 9.7’’ touch screen, 16MP Rear 5MP Front, 15000mAH battery capacity(for 8 hours continues use), which can rapidly perform comprehensive vehicle diagnostics & analyzing.

Dual wireless connection free your from the entangled cables and provide fast data transmission. WIFI connection communicates to the Internet for more data and information. The working range of the 5G WIFI is up to 164 feet (about 50 m) and the BT pairing is up to 328 feet (about 100 m).

Autel MS909 can identify the car via manually input VIN and Auto VIN technology, but also use the camera to Scan Bar Code/VIN/License to retrieve vehicle information and save time. Scan VIN is designed for Autel advanced diagnostic tools like MS909, MS919, and Ultra, and brings convenience.

MS909 diagnostic tool covers 80+ American, Asian, and European car brands and solves 98% of diagnostic problems. Updating is used to upgrade software, fix bugs, and add more vehicle models to optimize the MS909. We also provide you with 1-year free software updating. As for language, we only support English at present.
