Autel G-BOX2


  • work with Autel IM508/IM608/IM608 pro
  • Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable


Regular price Save -0% $120.00 $120.00
Regular price $120.00

100
Notify Me

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
Print

Description

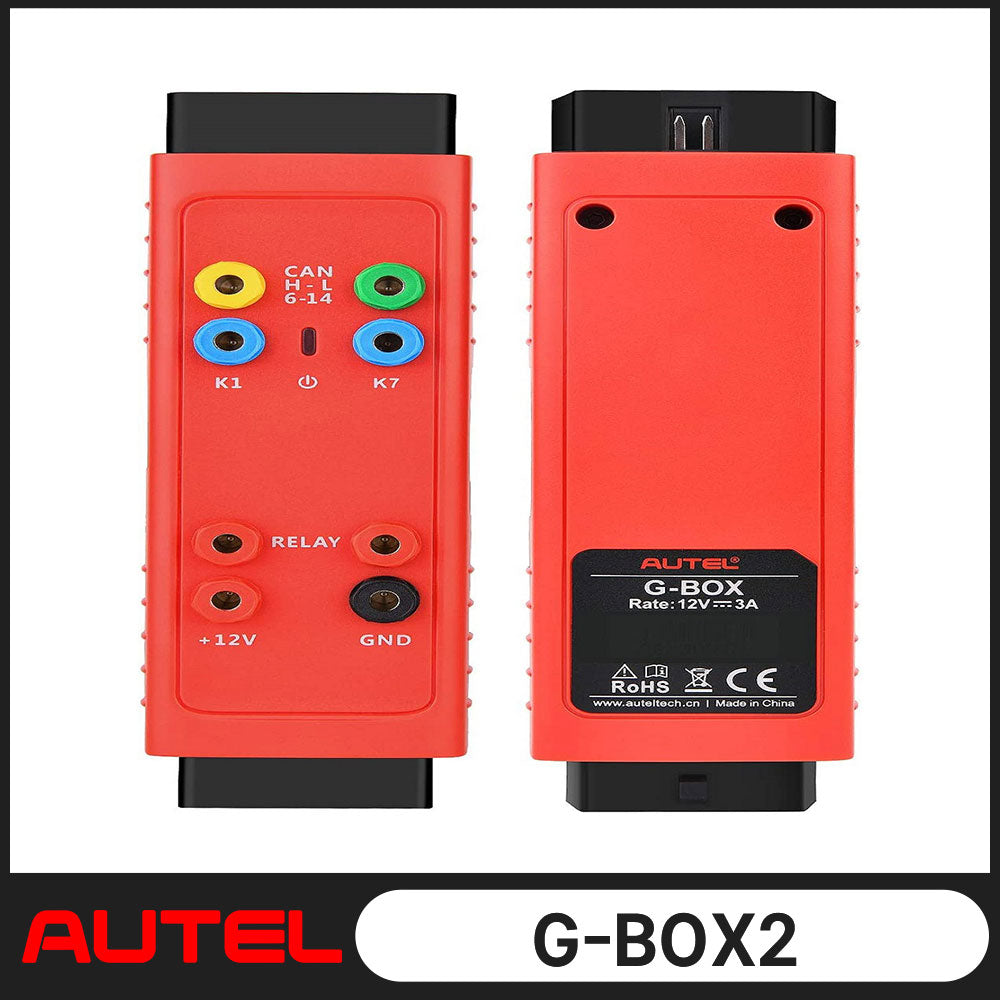

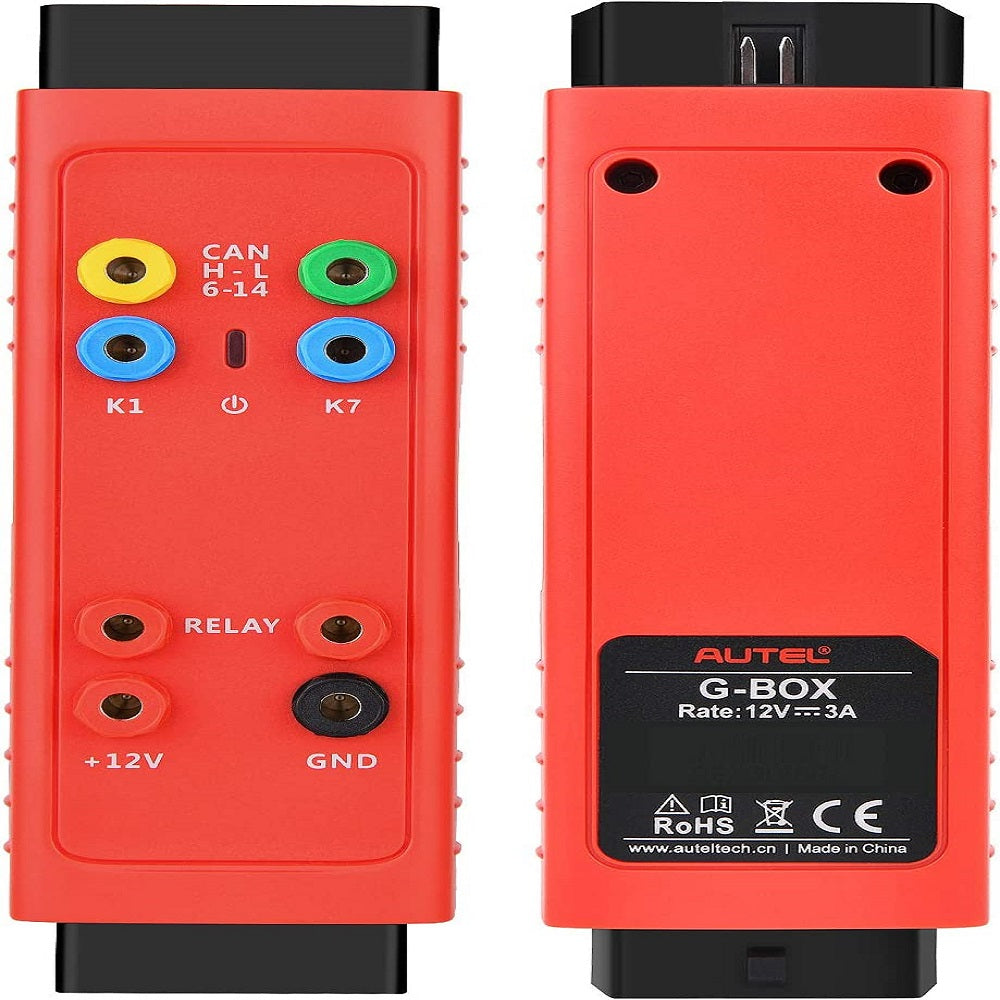

Autel G-BOX2 Product Display:


DC Port - Provides +12V DC power supply.
2. CAN-H Port - Universal CAN bus interface, connects with OBDII Pin6
3. K1 Port - Universal K-Line interface, connects with OBDII Pin1
4. Status Indicator - Indicates the current operating status
5. Relay Ports - Connect with dedicated relay cables
6. +12V Power Port - Universal power input/ output port
7. OBDII Connector - Connects to the vehicle's OBDII directly or via a dedicated extension cable
8. OBDII Female Connector - Connects to the main cable of Autel diagnostic tablet
9. CAN-L Port - Universal CAN Bus interface, connects with OBDII Pin14
10. K7 Port - Universal K-Line interface, connects with OBDII Pin7
11. GND Port - Universal power input/ output port
12. DB15 Port - Used with dedicated DB15 cable for reading and writing multiple types of ECUs

How to Use Autel G-BOX2 Work?

1. OBDII Operation when all keys for Mercedes-Benz vehicle are lost
Use OBDII access on for Mercedes=Benz vehicles manufactured after 2009 with W204, W207, W216 and W164 EISs

1. How to do via OBD When All Keys for Mercedes-Benz Vehicle Are Lost
This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.



How to do on Bench When All Keys for Mercedes-Benz Vehicle are Lost
This Method is suitable for Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet





How to Connect Autel G-BOX2 Step by Step:
1. Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box using a power adapter (DV 12V)
3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)
