Autel MaxiSys MS906 Diagnostic tool


  • OE-level All System Diagnosis
  • 1 year free update
  • English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian , Done, Swedish, Czech


Regular price Save -Liquid error (product-price line 31): Computation results in '-Infinity'% $854.00
Regular price $854.00

Autel

159

Notify Me


Payment & Security
Payment methods
  • PayPal
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US

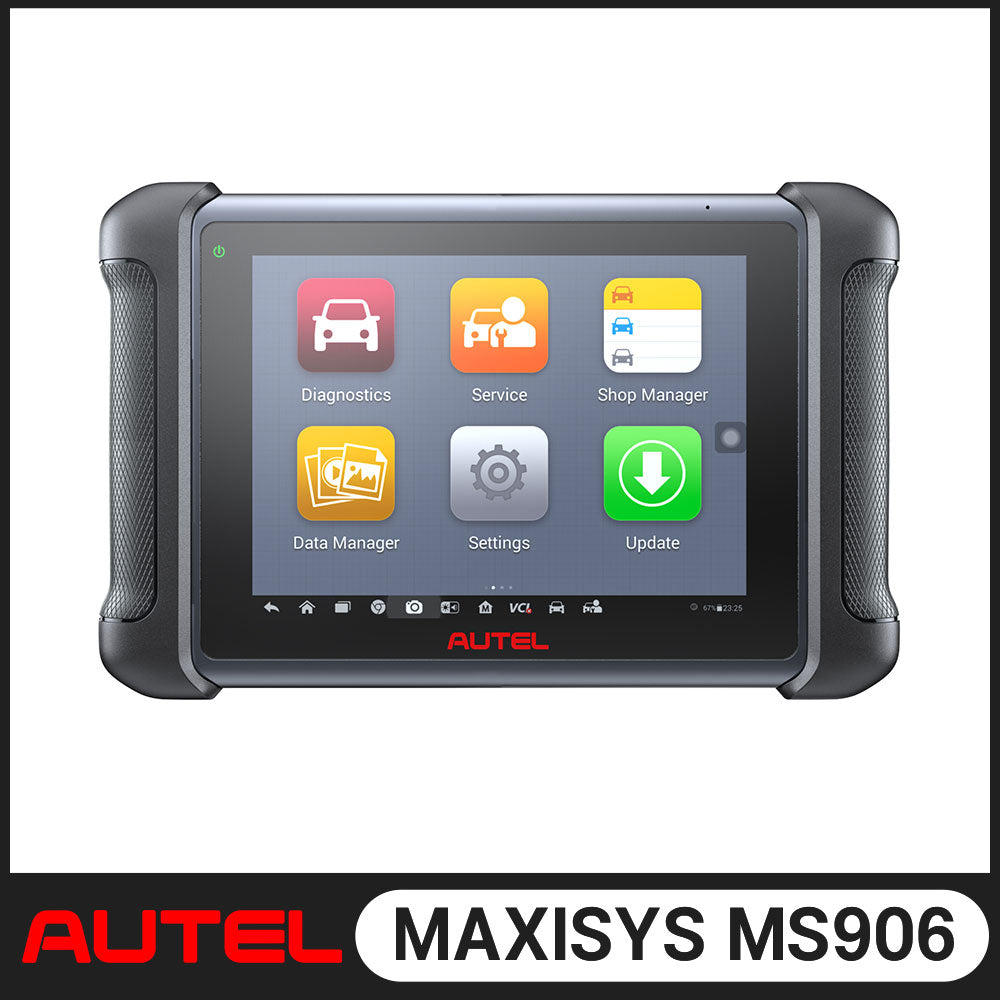

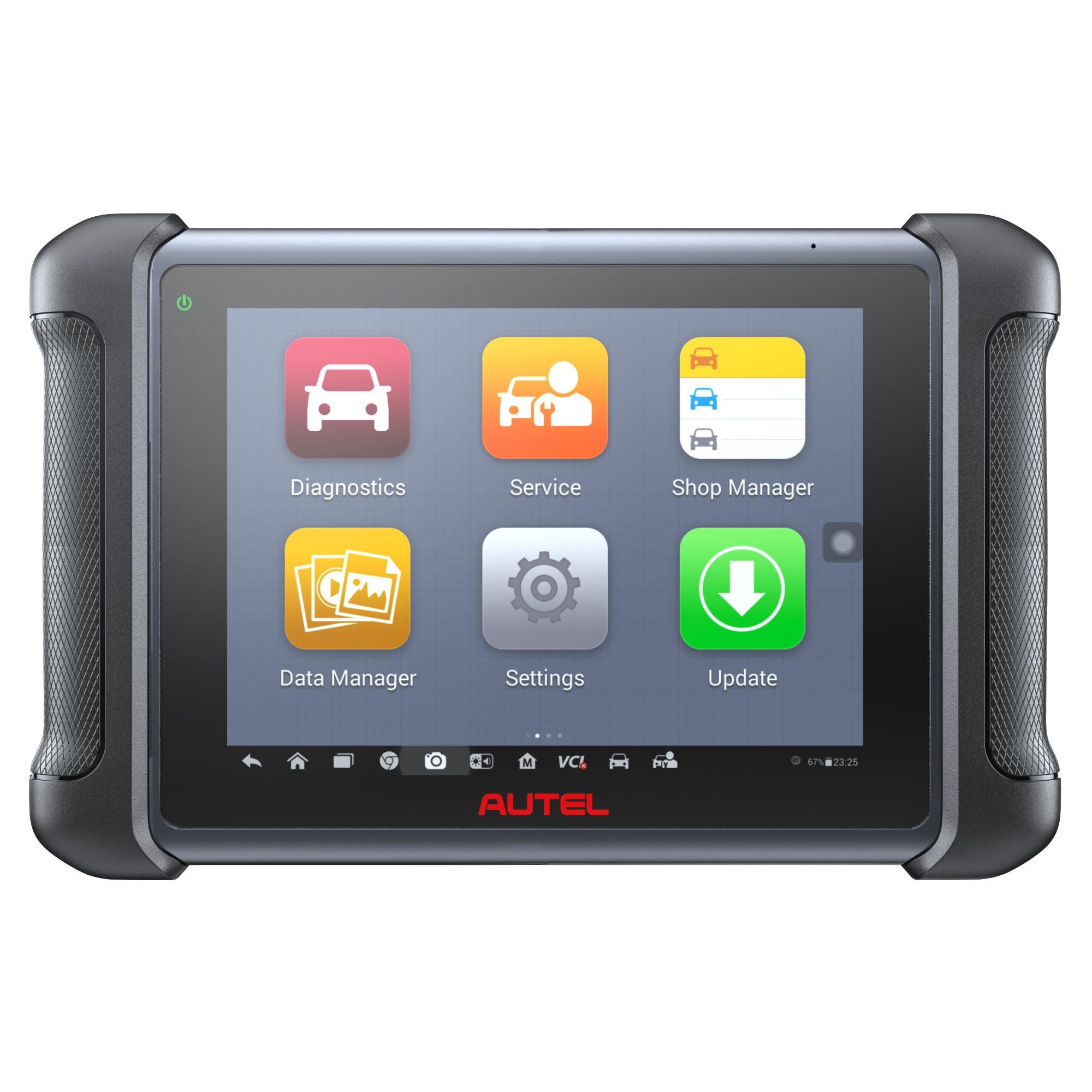

Autel MaxiSys MS906 is an advanced diagnostic tool developed for mechanics looking for a scanner with ultra-convenient and modern design while delivering ultimate performance. Featuring the Samsung 6-core processor, an 8.0 inch LED capacitive touch screen, Android multitasking operating system and the exceptional OE-level diagnostics, this diagnostic scanner MS906 is absolutely an ideal solution to manage your repair jobs smartly and conveniently with greater integration.



Autel MaxiSys MS906 Features:
1. Hardware

Extraordinarily powerful Cortex-A9 quad-core processor
9.7inch 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
2. Software

Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Complete capabilities for codes, live data, actuation tests, adaptations
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases


Autel MS906 Specifications:

Operating System Android 4.4.2, KitKat
Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0″ LED capacitive touch screen with 1024x768P resolution
Connectivity Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker
Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage DC/12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0″) x 176.0 mm (6.9″) x 36.0mm (1.4″)
Weight NW: 0.93 kg (2.05 lb.)
Bullet Points

Complete Diagnostic – Autel MS906 performs advanced vehicle diagnostics and analysis, such as live data view, actuation tests (bi-directional control), adaptations and more dedicated services functions like key fob programming, program modules, ECU coding, Injector coding etc.
Smart Scanner – The diagnostic scanner featuring the latest AutoVIN technology to identify vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostics on selected systems. It not only support full system, but also special functions like ABS, SRS, EPB, SAS, DPF, TPMS,OIL Reset.
Extensive OE-Level Converge – This automotive scan tool diagnose a broad range of automotive related problems for over 80 car manufactures such as Chevrolet, Ford, GM, Audi, Benz, BMW , Dodge and with Autel Full Connect Kit.
Enjoyable Experience – Autel scanner MS906 with the same operate system, processor, memory, screen size with MS906BT. Compare with MS906BT, MS906 without the VCI, but use cable connection could provided the quick and stable diagnosis speed. The hardware is better than Autel MaxiDAS DS808.
Online Update – Automatic system and software updates with real-time push message notifications via internet; 1 year for quality problem and 1 year free update(if you do not want to update, the device could also use normal)
