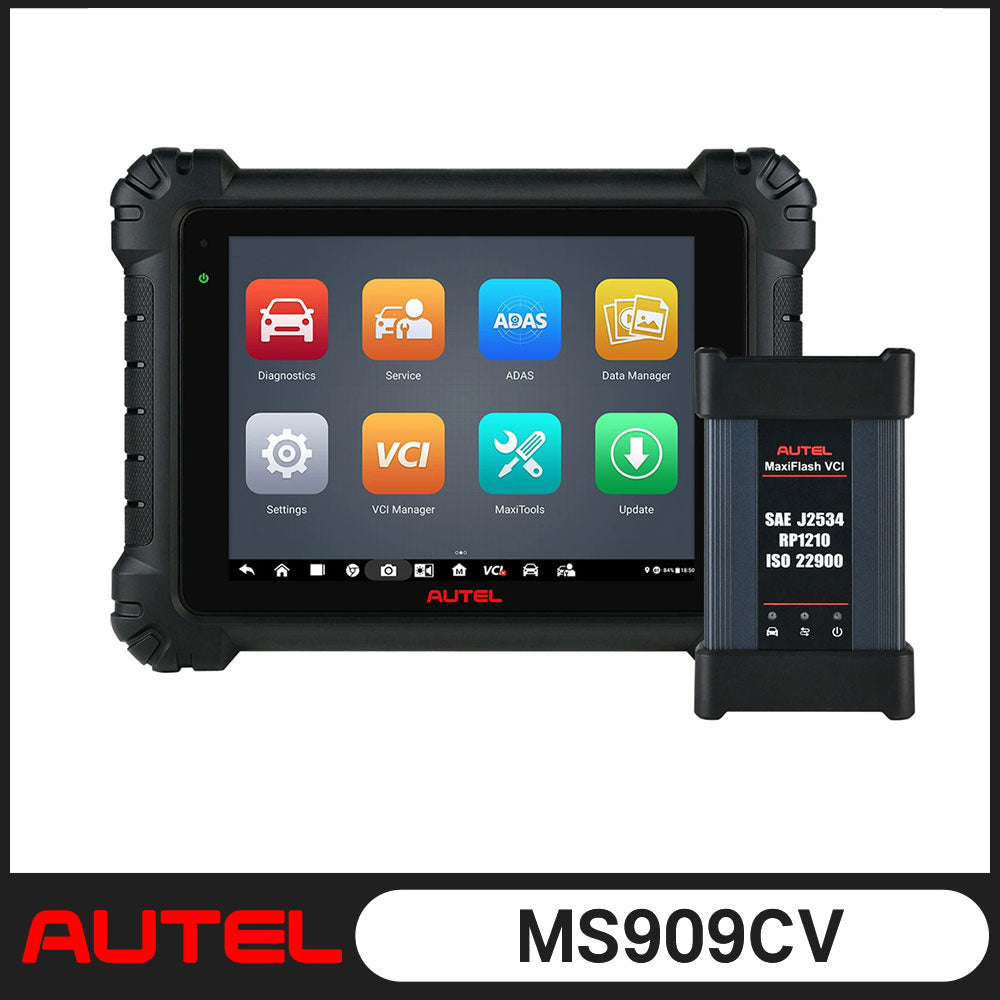

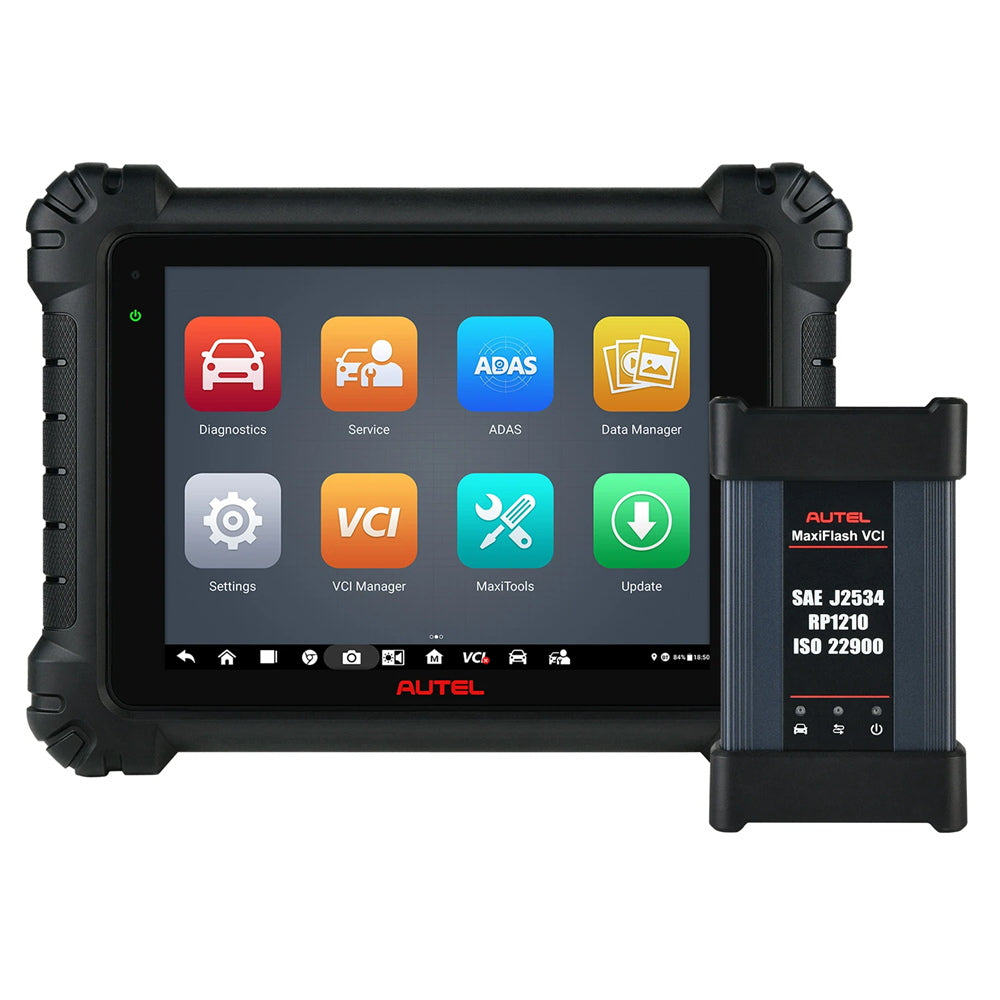

Autel MaxiSys MS909CV OBD2 Diagnostic Tool


  • Only Shipping to USA
  • 1 Year Free Update
  • Top of the Line Factory Level CV Scan Tool
  • Superior Hardware, Faster Diagnostic Speed
  • Advanced J-2534 ECU Coding
  • 36+ Special Services & 23 Adaptions


Regular price Save -5% $3,999.00 $4,199.00
Regular price $3,999.00

1000
Notify Me

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
Print

Description

Autel MaxiSys MS909CV OE-Level CV Scanner

Autel MaxiSys 909CV is built on the powerful MS908CV/MS906CV platform with twice the processor performance, faster graphics, and twice the storage capacity, while providing diagnostics, topology mapping, ADAS calibration, battery analysis, and Remote Expert to make your Truck Repair Modernization: A CV scan tool created for over 150 light, medium and heavy-duty (Class 1-9) model repair needs. This heavy-duty truck Autel MS909CV scanner features ECU Coding to adjust road speed limit (RSL) and power take-off (PTO) etc, coded data backup/restore for peace of mind. The $1000+ J2534 pass-thru box allows you to subscribe to OEM software for ECU flashing, programming, or factory upgrades, no need to buy expensive OE truck scanners for every brand, same level as MaxiSys Elite to increase your productivity and fit More customer requests.

2023 TOP DIAGNOSTICS IN INDUSTRY FOR CV, TRUCKS (LIGHT, SEMI-, HEAVY), BUSES

Hardware:

  • Revolutionary¬†Qualcomm 660 Octa-core Processor¬†(2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

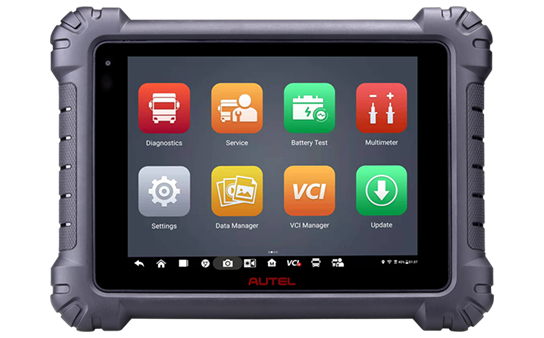

  • 4GB RAM & 128GB¬†On-board Memory, supports up to 256G external SD card,¬†9.7-inch¬†TFT-LCD with¬†1536 x 2048¬†resolution & capacitive touch screen
  • Built-in¬†16MP rear camera¬†with autofocus and flashlight, add¬†16 MP¬†front camera for clearer pictures anytime
  • Dual Wi-Fi¬†(802.11 a/b/g/n/ac 2x2 MIMO)
  • 15000mAh¬†super large lithium-ion battery for up to 10 hours of continuous operation
  • J2534 as the VCI supports wireless¬†working range up to 230 meters,¬†working with OE software

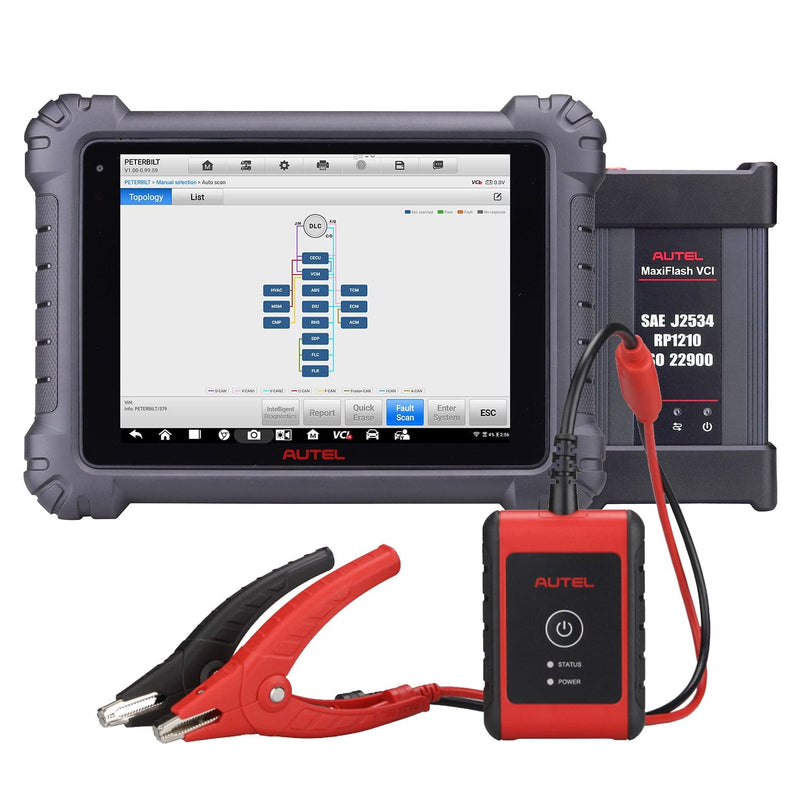

  • MaxiBAS B200 for detailed vehicle battery health testing



Software:

  • Android 10.0¬†Operating System for fast boot-up and multitask processing, easy vehicle brand/ engine navigation, super fast VIN identification
  • Factory-Level ECU Programming & Coding¬†for ECU replacement, writing adaptive data, reinforce vehicle performance
  • 30+ Services¬†and¬†23+ Adaptation Functions, all in step-by-step instructions, solve all the service/ reset questions
  • Extensive vehicle coverage¬†for more than 150+ US, Asian and European commercial vehicle makes and machines
  • More:¬†Full Bi-directional Control, Preconditions Checklist, Live Data Monitor in Graphic,¬†Exclusive D*P-F System Diagram, VAG Guided Function,¬†Heavy Duty Battery Test with BT200 included, Auto Scan 2.0, Pre & Post Scan, WIFI Print, Report to Cloud,¬†1 Year F-ree Updates etc.


REAL DIAGNOSTICS & TOPOLOGY 2.0 SAME AS AUTEL ULTRA

Autel MaxiSys CV MS909CV scanner supports in-depth diagnosis on all the available system of over 150+ makes of trucks, buses, and heavy duties. Besides all the Comprehensive Diagnostics: ECU information, reading fault codes, clearing fault codes, reading freeze frames, display live data, and performing active tests.

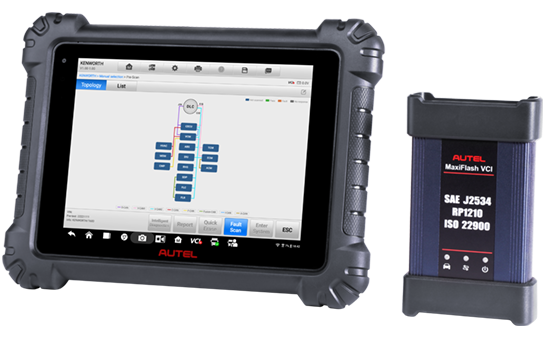

Intuitive Topology Mapping 2.0

  • Show real communication structure of all ECU module, easy to understand wiring schematics for on-highway trucks
  • Tap to enter the systems or modules with fault codes
  • Zooming in and out to check the color coded modules



AUTEL MAXISYS MS909CV-- ADVANCED ECU CODING WITH J2534 PROGRAMMER

DEALER-LEVLE ECU PROGRAMMING & CODING WITH J2534 PROGRAMMER

Autel MaxiSys MS909CV HD automotive scanner features advanced ECU Programming & Coding that average diagnostic tools don’t support. Performing just like an OE tool, Autel MaxiSys CV MS909CV can:

  • Re-code adaptive data into the ECU after replacement
  • Update the vehicle's on-board system to the latest
  • Fix the issues such as drivability, power loss, emission
  • Improve fuel efficiency and durability of mechanical parts
  • Change the default setting and make your customized functions
  • Unlock Hidden Functions



Note: ECU Programming & Coding is not universal to all cars, and it varies from the commercial vehicle’s manufacturer, year, and model, please check compatibility with VIN before order.

Autel-Maxisys-MS909CV

30+ SERVICES + 23 ADAPTATION FUNCTIONS, UPGRADED OF MAXISYS MS908CV/ MS906CV

Auel MaxiSys MS909CV advanced truck scanner comes with 30+ Serivces and 23 Adaptation functions to meet most daily maintenance needs, with the professional diagnostic tablet for HD and trucks, you can do the adaptations without going to the local workshop and save you a wealth. Or if you were an owner of a HD car workshop, Autel MS909CV diesel truck scanner will be a gold-earner and help boost your business to a new level.

The Most Daily Used Functions such as:

ABS Bleeding: Bleed air out of the brake system to restore its braking sensitivity.

BMS Reset: Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.

Complete Battery Health Check: battery load test, cranking analysis, generator test with B200

Brake Reset: After or before changing the brake pads, the tool can help you reset the brake sensor.

Injector Coding: Match the new injectors to vehicle ECU after replacement.

Oil Reset: Set zero to the oil light and set the next service mileage after changing oil.

Air Suspension: to adjust the height of the vehicle body.

Throttle Matching: Initialize the throttle actuators so that the learned values stored on ECU are returned to the default state.

23+ Reset functions for instance:

DOC/D_P-F Replacement Reset, Fuel Pressure Adaptation Reset, Injector CEOM Reset, O2 Sensor Calibration, Injection Quantity Adjustment, Aftertreatment DP-F Regeneration, DSI System De-Aeration, MAF Sensor Calibration, Parameter Setting, Aftertreatment Maintenance, Aftertreatment SCR Catalyst Cold Soak Override, Boost Calibration, Timing Calibration and etc.

NOTE: Services and Adaptation functions are not universal to all the heavy duties/ trucks, please check compatibility before order.

EASY MUTUAL COMMUNICATION WITH BI-DIRECTIONAL SCANNER AUTEL MS909CV

EASY MUTUAL COMMUNICATION WITH FULL BI-DIRECTIONAL

Autel MaxiSys MS909CV heavy duty diagnostic scan tool can send test commands to the subsystems or components without vehicle controls. You can test the integrity of the system or parts by monitoring the response of the tested parts , such as ABS pump, valves, window, door, roof, lamps and etc. For instance, in the case of OBD II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display.

More Active Tests such as: Radiator Fan, lnterior light, Exterior Lights, Sound Horn, ACC Lkas, ACM Solenoid, Fue-l Pump, Door Loc-K Actuators, Test Injector, Left Clutch Elec. Coil, Acceleration Device, Oil Pressure Control, lnlet & Outlet Valve, Open Brakes, Wheel Speed Sensor, Parking Brake, Modulate Throttle, Injector Buz, Cycle A/C, Clutch On/Off, Open/Close Windows, Operate Mirrors and etc.


AUTEL MAXISYS MS909CV-- TOP-END HARDWARE FOR MOST SPEEDY DATA PROCESS & WORLDWIDE CV COVERAGE

TOP-END HARDWARE FOR MOST SPEEDY DATA PROCESS & WORLDWIDE CV COVERAGE

Top-End Hardware in Industry

No need to look else place, now you are checking on the Autel Top CV Diagnostic Scanner:¬†Android 10.0¬†operation system,¬†Qualcomm 660 Octa-core¬†Processor,¬†4GB RAM,¬†128GB¬†On-board Memory,¬†9.7‚ÄĚ 1536 x 2048 Screen, double¬†16MP+16MP¬†cameras, 15000mAh¬†super large capacity battery supporting over¬†10 hours¬†continuous working. Autel Maixsys MS909CV Diagnostic is definitely a great tool and will make your very penny spent worthy!

Unmatched Vehicle Compatibility

  • SCHAUTO, POWER STROKE, AISIN, IVECO, MACK, EATON, MTU, MWM...
  • BUS: OBD, VOLVO, AGRALE, HINO, ISUZU, MERCEDES BENZ, MITSUBISHI FUSO, VOLKSWAGEN, TOYOTA, RENAULT...
  • TRUCK: VOLVO, AGRALE, AUTOCAR, CAPACITY, DODGE, FIAT, FORD, FOTON, FREIGHTLINER, GMC, GREAT WALL, HINO, HYUNDAI, ISUZU, KIA, MERCEDES BENZ, MITSUBISHI, MITSUBISHI FUSO, NISSAN, STERLING, INTERNATIONAL, IVECO, VOLKSWAGEN, KENWORTH, MACK, PETERBILT, WORKHORSE, WESTERN STAR, SETRA, UD, RENAULT...



2023 New Added Models:

  • HINO Light Truck: Adds M4 and M5 models for North America & 300 Series
  • HINO Heavy Truck: Add 700 Series, 500 Series, L Series ( L6 and L7 models for North America)
  • Paccar Engine: Engine MX Series (GHG17/Euro 6) (2017- ), Engine MX Series (EPA 13/GHG14/Euro 6), Aftertreatment System EAS4
  • Paccar VECU System: Adds coding function: Maximum Vehicle Speed, Adds coding function: Maximum Cruise Speed, Adds coding function: Idle Shutdown Timer.
