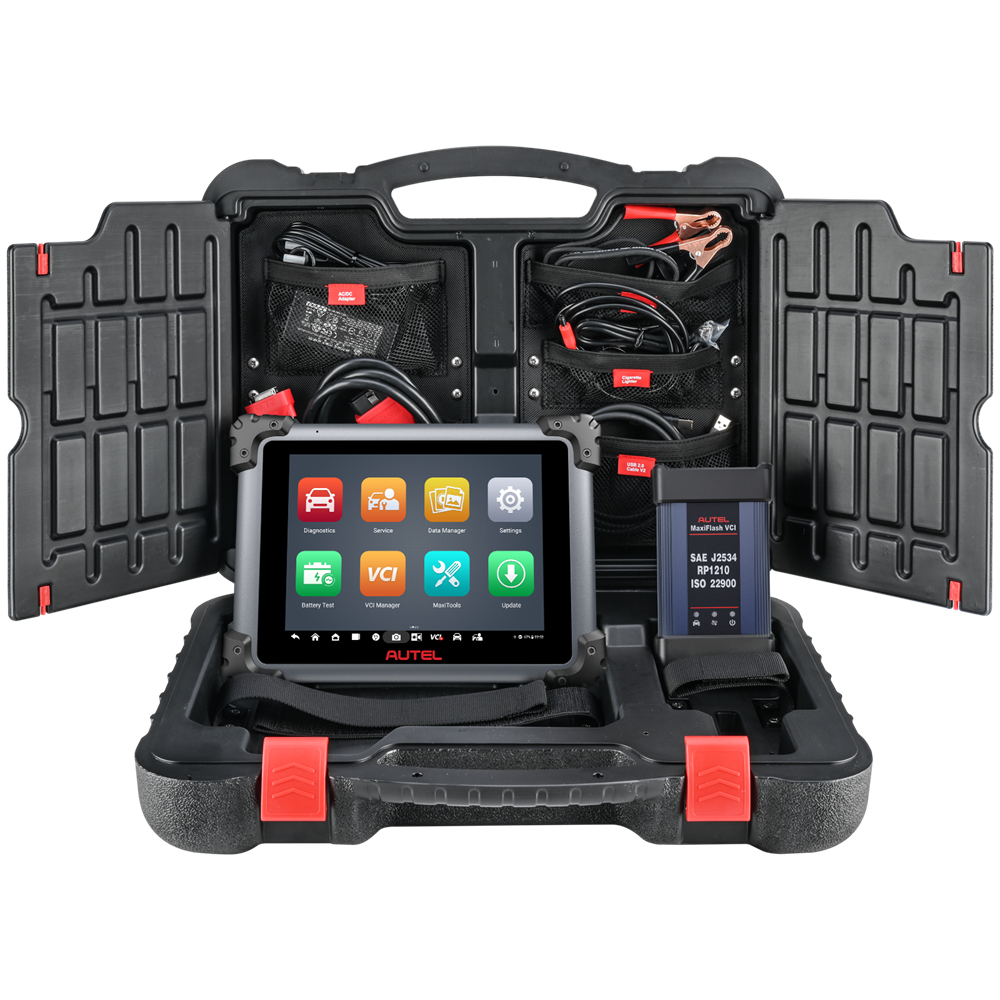

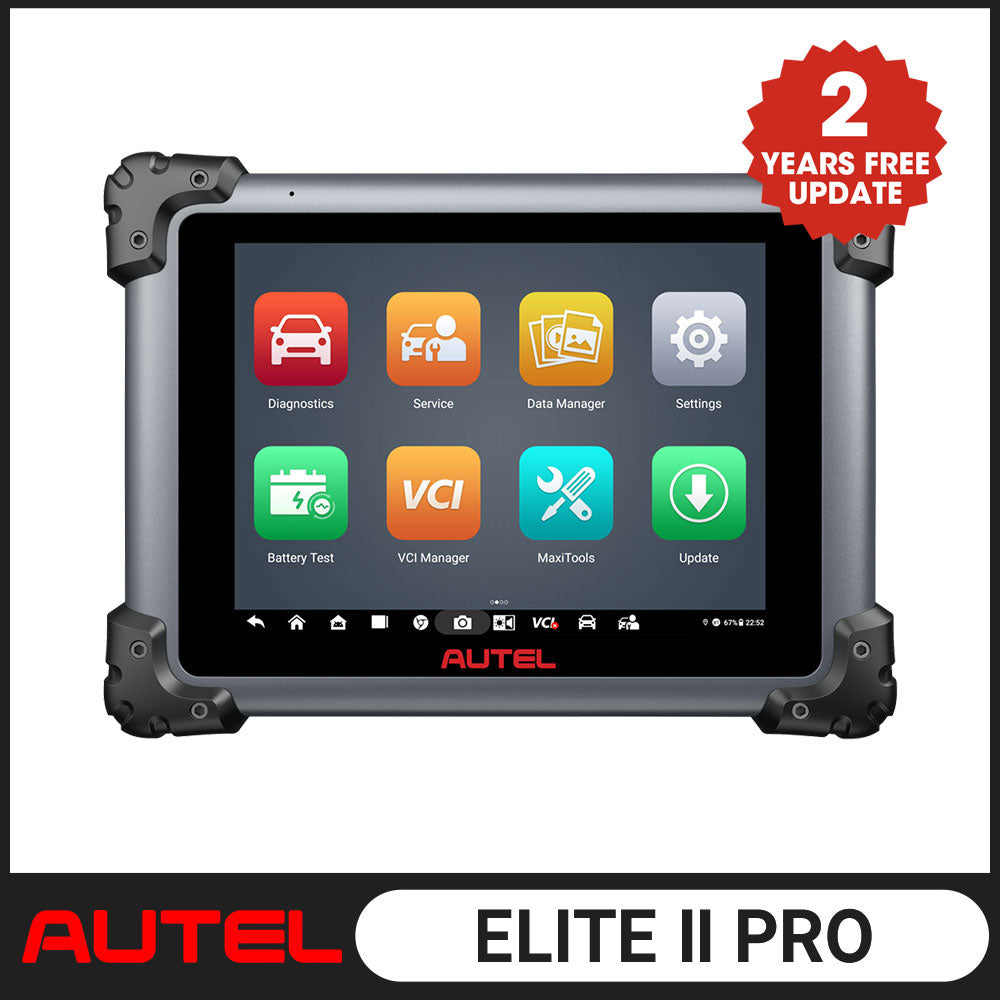

Autel MaxiSys Elite II Pro

Autel MaxiSys Elite II Pro: Brand New Professional Car Diagnosis Tool

Autel unveiled this flagship MaxiSys scanner Elite II Pro to maximize technicians’ intelligence. Built with higher-end functions than old MS908s Pro & MK908P, this ultimate diagnostic scanner has transformed the way of diagnostics, made every procedure easier ever with its multitasking, speed, and simplicity:

• [2 Year Updates at No Costs] this 2023 version Autel MaxiSys Elite will save you much more subscription fees compared with 2 year subscription-free scan tools; Software updated to 2021/2022/2023 and world-widely covers new car makes & models in 2023.
• [Upgraded from MS908s Pro & MK908P] - share almost the same functions as Autel Ultra; the features range from comprehensive OBDII/All System Diagnostics & 38+ Service Functions, to J2534 ECU Programming, advanced ECU Coding, Active Tests, VAG Guided Functions, Power Balance, Online Account Login Service, Autovin, AutoScan, PreSCAN & PostSCAN.
• [Wide Car Coverage] - 80+ manufactures, 150+ makes, 10,000+ models across the global, still expanding.
• [J2534 ECU Programming] - help Benz & BMW users upgrade the existing software/firmware in the ECU, program new ECUs; also available with vehicles that support the J2534 protocol. *Need manufacturer’s programming software.
• [Advanced ECU Coding] - customize the original car settings for better car performance, and reprogram adaptive data. *For specified control modules.
• [38+ Hot Service Functions] - fix 99% car-related maintenance issues, no need to turn to expensive ultimate scan tools.
• [Autel Cloud Services] - Remote Expert (instant remote control anytime, anywhere); Repair Assist (comprehensive repair materials for step-to-step guidance), etc.
• [Compatible with Function Modules] - MaxiBAS BT506 Battery Tester; Oscilloscope MP408, Endoscope MV105S & MV108S, etc. to expand the scan tool’s functionality.

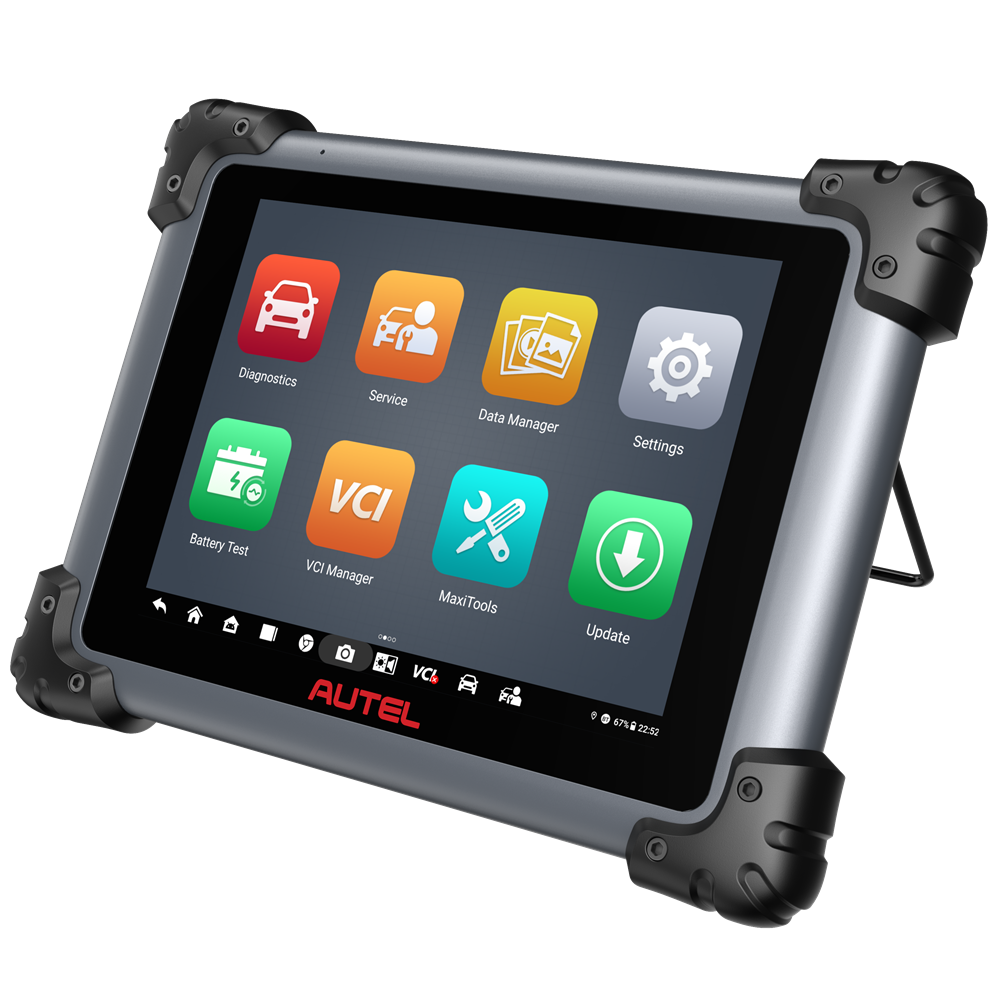

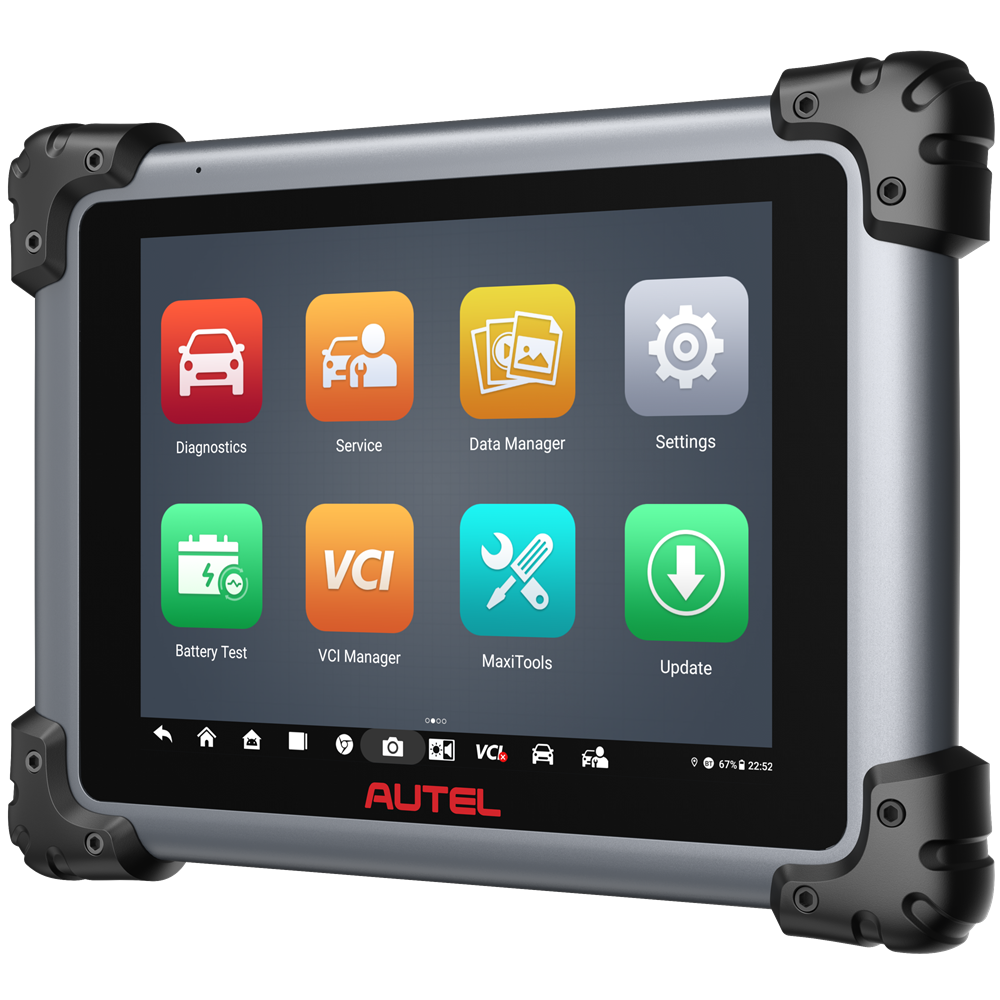

• [Superior Hardware] - Multi-tasking Android 10.0, KitKat OS; faster NVIDIA Tegra 4-PaLUS-1 Quad-core Processor 1.8 GHz; sharp-stunning 9.7" 2048*1536 Retina LCD touchscreen; 4GB RAM & 128GB ROM; 15400mAh battery, 8MP rear & 2MP front camera, wireless VCI connection, etc. Unique ergonomic design with rubberized outer protection and rugged internal housing.

The Smarter Way to Program & Customize the Car

Did you ever spend hours, days, or even weeks attempting to solve a drive-ability issue, before learning that an ECM recalibration or reflash could correct the problem in minutes? Now you have Autel MaxiSys Elite II Pro:

• J2534-Compliant VCI: Program ECUs Easily

Autel diagnostic scanner Elite packs the Pass-Thru Assistant J2534 device designed and developed as an easy solution for complex and time-consuming J2534 programming tasks. It can be used by any technician or shop, regardless of experience.

1. Built-in BMW & Benz MOST Chassis Software: access to OE data & updates to fix software-controlled driving performance and emission issues.
2. Replace Existing ECU Software/Firmware: reprogram or recalibrate the ECM and correct issues that are unforeseen when the car was originally manufactured.*
3. Fully complies with SAE J2534-1, supports many J2534-2 extensions, and is upgradeable for the future.

*Additional ECU support will need other individual manufacturers’ programming application capabilities.

• ECU Coding: Change Original Car Settings

1. Reprogram the Adaptive Data: for newly-installed ECU module after repair or replacement.
2. Fix Complex Issues: of Drivability, Fuel Efficiency, Power Loss, Fault Codes, and Durability of mechanical parts.
3. Activate Higher-level Car Functions: like making the pointer move and perform self checks etc.
4. Disable the Unneeded Car Functions: such as the Automatic Start/Stop etc.
5. Online ECU Coding is compatible with Volkswagen, Audi, Renault, Porsche, etc.

2023-Added Advanced Services to Keep Up With Technology

Autel constantly pushes itself to raise the bar on its most premium diagnostic scanners. This 2023-version MaxiSys series tool Elite II Pro is also backed by continuous research and development, assuring up-to-date technology and innovations for today’s increasingly complex diagnostics:

• Component Matching - to rematch ECU (control module unit) after the replacement; compatible with Volkswagen / Audi / Skoda / Seat / Ford / Opel / Mazda / Chrysler / Jeep / Honda / Nissan / Hyundai / Kia / Subaru / Mitsubishi etc.
• VAG Guided Functions - to skip the Security Access Code & Channel Number to perform matching, calibration, and make basic settings; compatible with Volkswagen / Audi / Skoda / Seat, etc.;
• Anti-theft IMMO Service - Disable the lost vehicle keys and add new keys for 3.5th gen. Volkswagen / Audi / Skoda / Seat etc., and most Asian cars with low-level antitheft systems.
• Power Balance - to identify the less productive cylinder; compatible with Chrysler (Cylinder balance test) / GM / Ford, etc.;
• Activate Hidden Functions - to make individual modifications to improve car’s performance; compatible with Volkswagen / Audi / Skoda / Seat / Jeep (auto lock/unlock) / Fiat (seatbelt warning sounds) / Peugeot (customer personalization) / Citroen (customer personalization) / Nissan (3-time flasher setting & auto lock/unlock) etc.;
• Online Account Login Service - compatible with Volkswagen / Audi / Skoda / Seat etc.

OE-Level All System Diagnostics & Worldwide Car Coverage

This Autel diagnostic scanner will give you in-depth access to all available systems. That includes Engine, SRS, ABS, Transmission, TPMS, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Rain Sensors, 4WD System, etc. You can pull codes, clear codes, check freeze frame data, view live data, plot PIDs, and run active tests.

It widely covers 80+ manufacturers, 140+ makes, 10,000+ models across the globe which include:

• America: compatible with Ford, GM, Chrysler
• Asia: compatible with Toyota, Nissan, Honda, Hyundai, Mazda, Holden, Lexus, Mitsubishi, Suzuki, Kia, Infiniti, Isuzu, Mahindra, Maruti Suzuki
• Europe: compatible with VW, Audi, Volvo, Fiat, Porsche, Renault, Benz, BWM, Saab, Scion, Subaru, Abarth, Acura, Alfa, Bentley, Bugatti, Citroen, Dacia, Daewoo, EU Ford, Jaguar, Lancia, LandRover, Mini, Opel, Peugeot, Seat, Skoda, Smart, Sprinter, Vauxhall
• Luxury Cars: compatible with Rolls-Royce, Lamborghini, Porsche, Bentley, Maybach, Bugatti, Ferrari, Roadster, Pagani, Koenigsegg, TechArt, McLaren …
• Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Moreover, the 2 YEARS with NO COSTS software updates will assure that you have the latest car coverage and growing features, with simple internet-ready updates accessible at a simple click of a button via Wi-Fi! After this grace period, you need to pay for renewals, but won’t lose the functionalities of the last update installed even if the software is not renewed.

38+ Hot Reset & Relearn Services to Fix 99% Repairs

The extensive menu in this Autel MaxiSys Elite II Pro scan tool can get quick access to 38+ most commonly used car maintenance services. You can have it to get repaired for 99% various scheduled repairs or maintenance. The features will be constantly updated for more options and wider vehicle coverage:

- Maintenance Light Reset: reset the oil service lamp after changing the engine oil; re-calculate the optimal oil life change interval for the engine oil maintenance being on schedule.

- Steering Angle Reset: reset the steering angle to zero to keep the car running straight.

- Electronic Parking Brake Reset: help replace and reset the brake pad.

- ABS Bleeding: help exhaust the air in ABS system in an easy way.

- Throttle Matching: initialize the throttle actuators to the default state.

- Battery Matching: register the battery after replacement.

- DPF Regeneration: help remove the particulate matter to keep the trap stable.

- Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.

- Headlight Matching: initialize the adaptive headlamp system.

- Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.

- Sunroof Initialization: initialize the sunroof when to be locked off, or closed.

- Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.

And many more, still expanding.

The function menu is depended on the vehicle’s make, model and year.

Superb Constructions to Make Your Work Easier

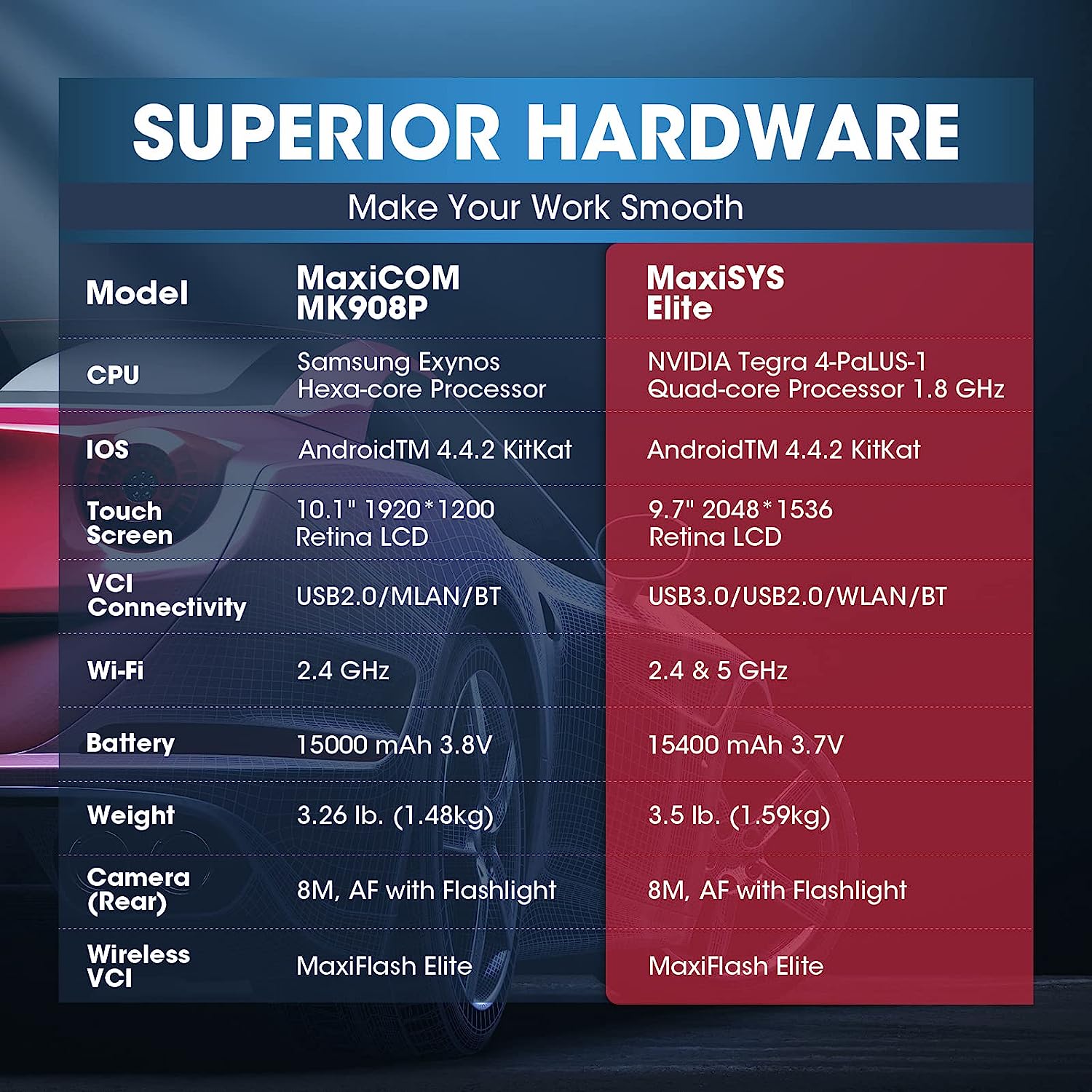

Elite II Pro vs. MK908P

Both professional-grade diagnostic tools are two of the top-ranked car scanner examples in the market today, but Elite literally gets everything to make sure the repairs are going as smoothly as you imagine:

1. CPU - 1.8GHz NVIDIA Tegra 4 processor runs faster than Exynos which MK908P has. Screen - Vivid retina display as an iPad with sharp 2048*1536 pixel density being so high that your eyes even can't detect individual pixels. Though smaller than MK908P, its 9.7-inch size is much larger than most of its rivals.
2. onnectivity - Improved USB 3.0 and an RJ45 Ethernet connector.
3. onnection - Dual 2.4 & 5 GHz for more solid and stable wireless data transmission.
4. attery - Runs longer due to an increase in capacity to 15400mAh.

• Multi-tasking Android 10.0, KitKat OS

Aside from the faster processor, this car scanner also features a unique operating system. The excellent Android 4.4.2, KitKat OS works great to multitask without slowing down the performance of the scan tool. You can handle more than one function at the same time, and are at peace in getting fast data coding and repairs.

• Cameras & Memory

The built-in 2MP front camera, and 8MP rear camera with autofocus capability can take clear and sharp snapshots for further analysis. Saving that and all the diagnostic data/files are quite easy thanks to the 4GB RAM & 128GB embedded memory space.

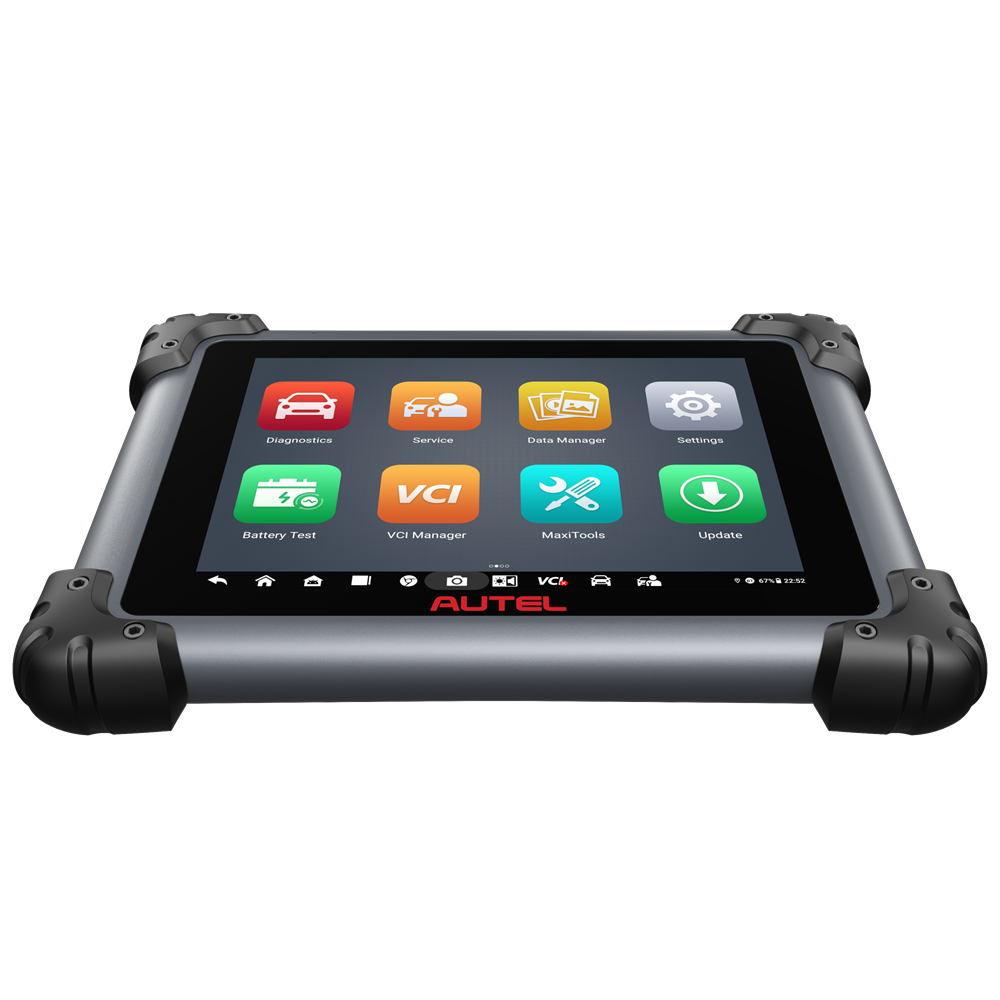

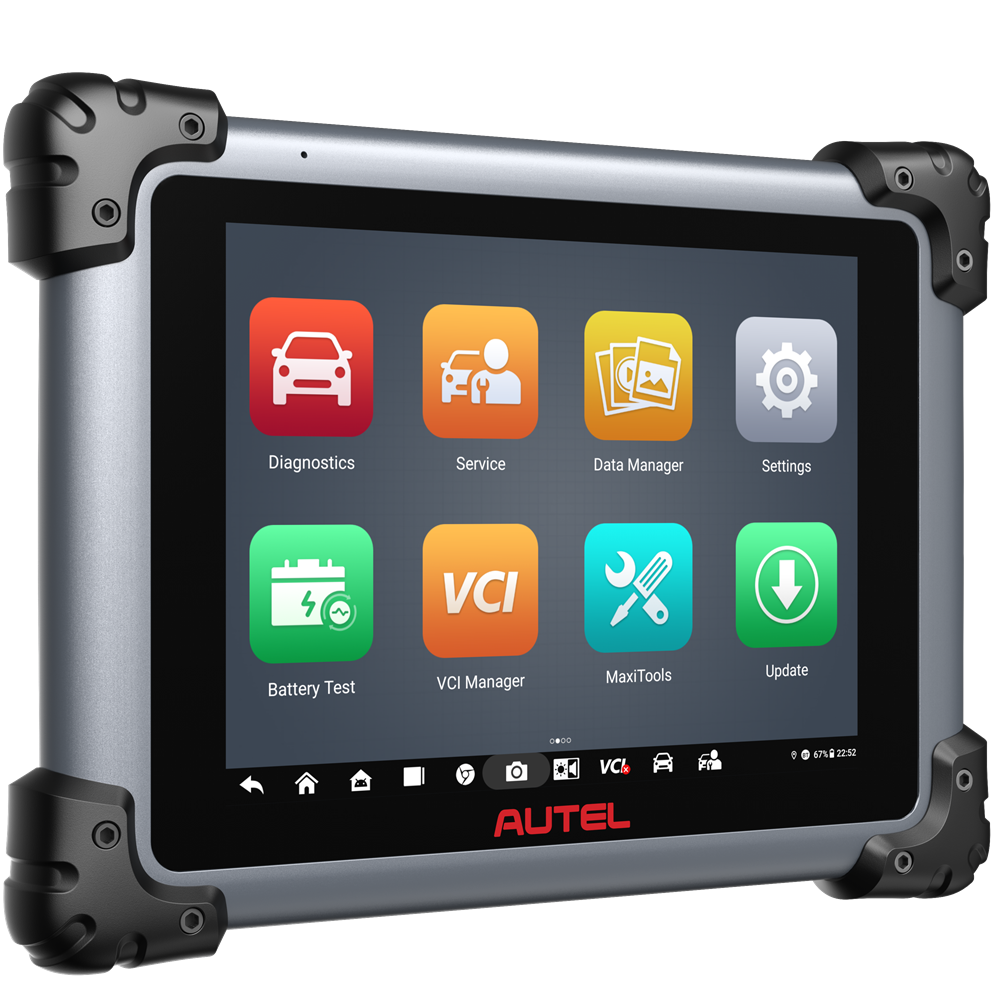

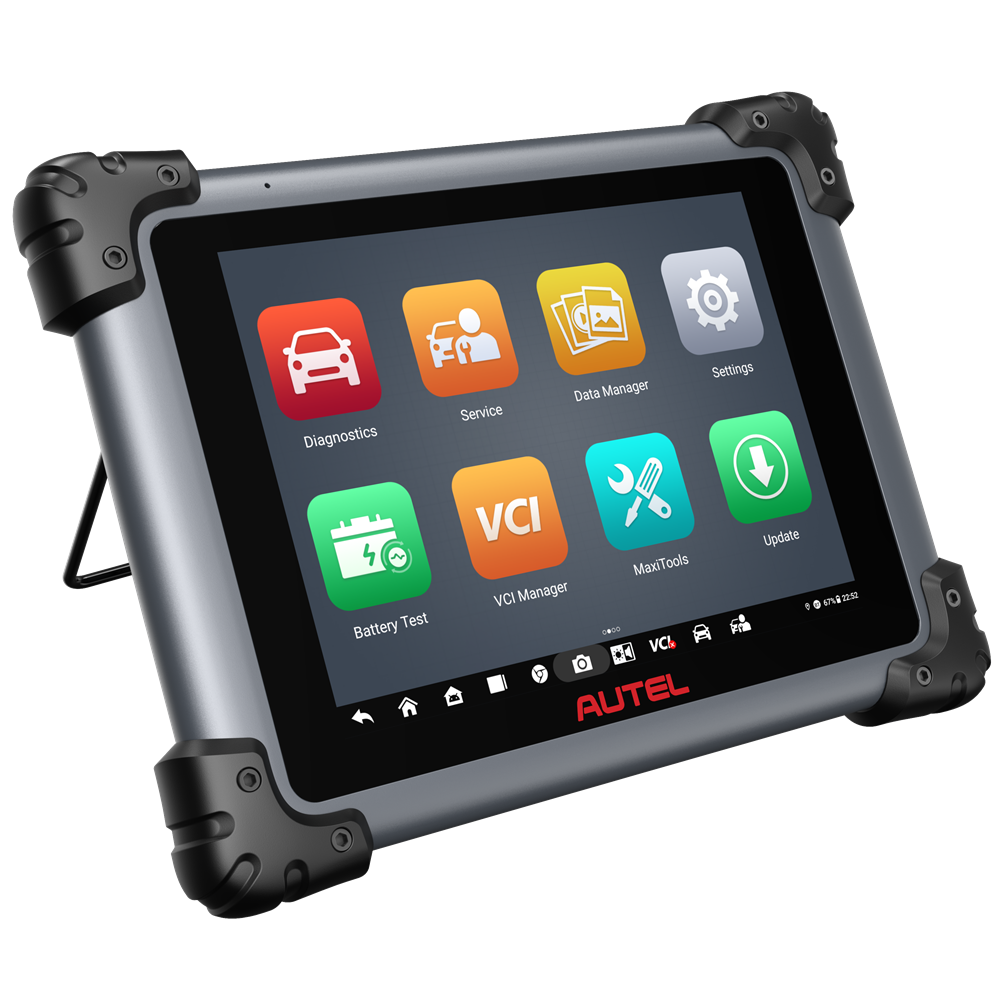

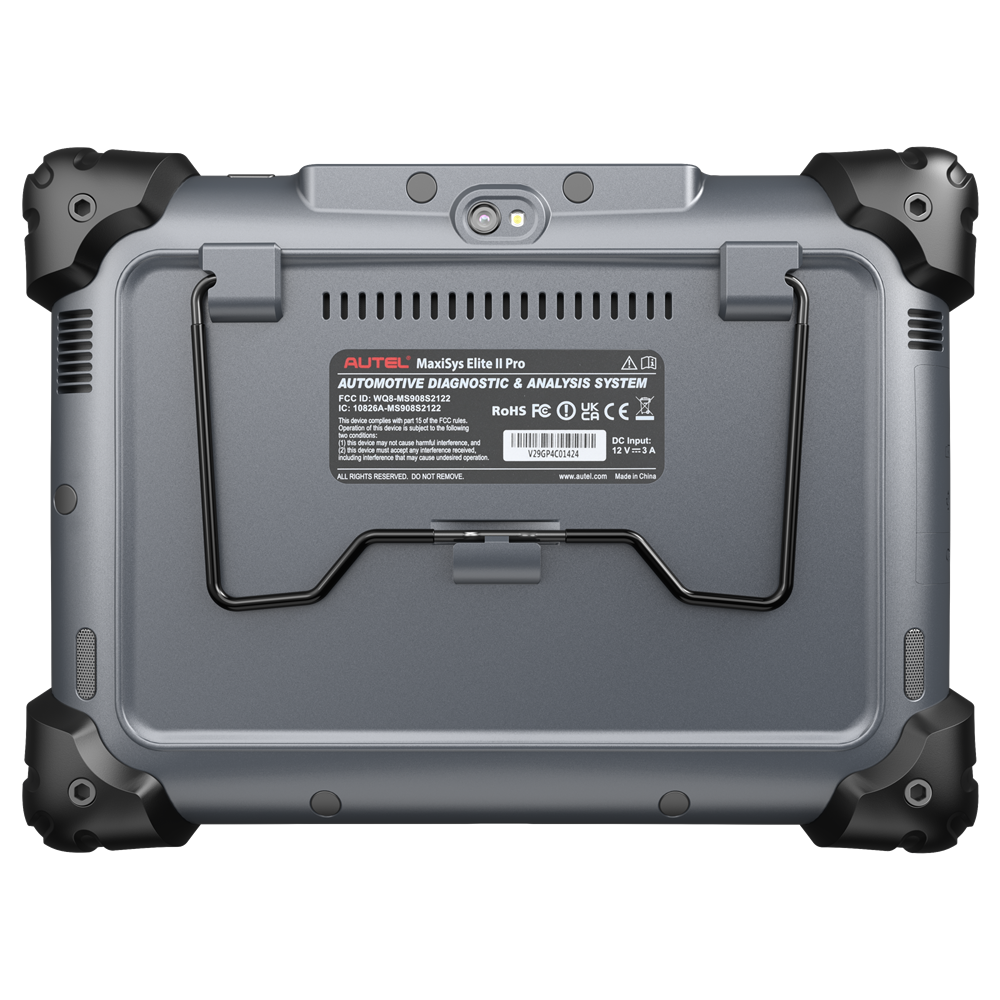

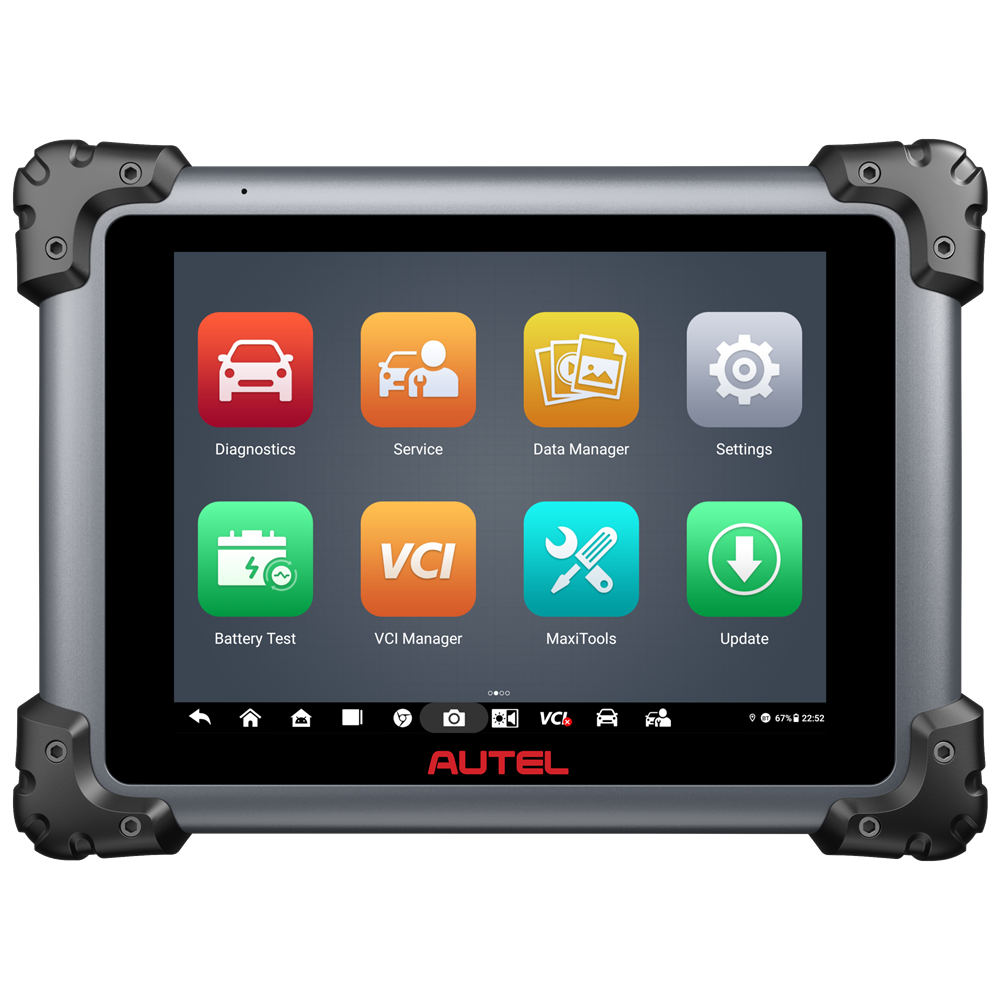

• Durable Tablet

This well-constructed diagnostic scanner is designed to last long, and defy tough conditions around car repair shops. The hard plastic material can withstand impact and crush from daily use. The rubberized sleeve can not only offer a firm grip but as well as protect the unit from accidental crushing or damage when it falls.
