Autel MaxiSys Ultra Diagnostic Tool

  • Maxisys Ultra - Top 1 Scanner in 2024
  • Updated version of MK908P/MS908P/Elite/MS909/MS919
  • 5-in-1 VCMI,36+ service functions
  • ECU Programming & Coding

Regular price Save -0% $3,999.00 $3,999.00
Regular price $3,999.00

195 200 200 200 200 200
Notify Me

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx


Autel MaxiSys Ultra - 2024 TOP SCANNER, Maximize Your Intelligence

MaxiSys Ultra is Autel's most ambitious diagnostic tablet, designed to maximize technician intelligence. Autel Maxisys Ultra adopts a 12.9-inch touch-screen tablet with an Android 7.0 operating system powered by an octa-core processor (2.3GHz quad-core + 1.7GHz quad-core) with a powerful 256GB built-in memory, all of which support the new split-screen multi-app navigation to provide Diagnostic guidance and testing of components to confirm repairs. Combined with dynamic topology module mapping, enhanced AutoSCAN functionality, and smart diagnostic options, Autel ultra scan tool provides technicians with step-by-step repair guidance. The new MaxiFlash VCMI can be used as a 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester. A convenient docking station ensures you always have the power to scan. A high-end diagnostic scanner for 2023, the Autel MaxiSys Ultra is packed with all the features you could need to become a professional mechanic.

Autel MaxiSys Ultra is a phenomenal mechanic scan tool that has everything one could need for modern automotive maintenance and alteration. High-end programming, scanning, and testing are all covered by its accompanying software:

✔️Overall by function, it is Ultra > Elite > MS909 > MK908P > MS908spro.

✔️Perform the same level of analysis, diagnosis and repair as the OEM dealer tools, but far more intelligent with efficient operations; help save costs and grow revenue.

✔️New 5-IN-1 VCMI functions as a wireless VCI, 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.

✔️Make your work ever easier with 2022-newly added dynamic topology module mapping, along with repair assist, TSB, repair tips, videos, and related cases.

✔️Fully compatible with D-PDU/J2534/RP1210/DoIP/CAN FD protocols to cover more and new car models.

✔️ECU Programming & Coding to access the latest OE downloads and fix software-controlled issues, or make personal settings for more satisfying driving experience.

✔️Give quick access to the car’s all available systems for 36+ HOT maintenance services.

✔️A rich array of high-end functions to handle ever-demanding repair needs for countless car models: component matching, power balance, online account login service; VIN recognition via barcode; enhanced AutoScan, PreSCAN & PostSCAN, etc.

✔️Direct bi-directional control to determine the component’s status with given commands.

✔️A true workhorse; Android 7.0 OS, Octa-core processor, substantial 256GB for smooth split-screen multi-application navigation; powered by 18000mAh battery and docking station for 24/7 standby use.

Bi-directional scanner-6

36+ Hot Service Functions. Handle Busy Car Care.

There are 36+ commonly-used service functions in this bidirectional scan tool, providing quick access to the vehicle systems for various scheduled service and maintenance tasks:

Oil Reset • Inject. Coding • Brake Reset • SAS Reset • BMS Service • ABS Bleeding • Throttle Matching • TPMS Reset • DPF Reg • Gear Learning • AFS Reset • EGR Adaption • Gearbox • Sunroof • SUS Reset • Windows Calibration • Seats Calibration • Language Change • A/F Reset • Coolant Bleed • Transport Mode • Adblue Reset • NOx Sensor Reset NOx • Stop/Start Reset • Headlamp Fitting • Seat Matching • Door & Window Initialization Study • Air Suspension Matching • Multimedia Video Reset • Cluster Reset • Immobilizer Service • Tire Change • and many more.

*The service software covers the majority of car models worldwide up to 2018/2019/2020/2021. The function menu list is dependent on vehicle’s make, model and year.

10+ High-end Functions. Meet More Challenge.

✔️Component Matching: rematch E/CU after the replacement. Compatible with Volkswagen/Audi/Skoda/Seat/Ford/Opel/Mazda/Chrysler/Jeep/Honda/Nissan/Hyundai/Kia/Subaru/Mitsubishi etc.

✔️Anti-theft Matching: Disable the lost vehicle keys and add new keys for 3.5th gen. Volkswagen/Audi/Skoda/Seat etc., and most Asian cars with low-level antitheft systems.

✔️Power Balance: identify the less productive cylinder. Compatible with Chrysler (Cylinder balance test)/GM/Ford, etc.

✔️Activate Hidden Functions: Make individual modifications to improve car’s performance. Compatible with Volkswagen/Audi/Skoda/Seat/Jeep (auto-lock/unlock)/Fiat (seatbelt warning sounds)/Peugeot (customer personalization)/Citroen (customer personalization)/Nissan (3-time flasher setting & auto-lock/unlock) etc.

✔️Online Account Login Service: Compatible with Volkswagen/Audi/Skoda/Seat etc.

✔️And New Scan VIN (test or barcode recognition with camera); Enhanced all system AutoScan; PreSCAN & PostSCAN Diagnostic reports … and more coming soon.

Autel MaxiSys Elite MS908SPRO-3

Topology Mapping: Streamline Your Workflow

The smart topology module mapping in this diagnostic tool shows all available control units of the test vehicle in different colors. So you can:

  1. Know the numbers of systems, the scanned systems, and the scan results at a glance.
  2. Clearly view the diagram tree in detail by zooming in and out.
  3. Simply click the module to check the fault and quickly determine the root cause.
  4. Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.


OE-Level System Diagnostics: Access to All ECUs

Sure thing, as snap on tools, MaxiSys scanner Ultra performs all-system diagnostics.

  • Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments, Self Leveling Suspension systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tire Pressure, Rain Sensors, 4WD System … depending on vehicle’s make, model and year.


It even has 3 Auto-VIN detection options to automatically pull information off your vehicle: scanning the license plate, VIN code, and barcode; and has an Auto-Scan function to check the whole system in seconds:

  • Show the E/CU information such as unit type, version numbers, and other specifications.
  • Monitor the real-time Live Data Stream, and conduct Active Tests, etc. to root out the underlying problems hidden in central systems and sub-systems.
ECU Programming tool-5

Do Factory-level Repairs without Dealer-only Tools

Did you ever spend hours, days or even weeks attempting to solve a tricky issue, only to learn that an E/CM recalibration or reflash could correct the problem in minutes? This escaner automotriz professional features E/CU Programming and Coding services. This key programmer puts power and creativity in your hands to save you from headache E/CU maintenance.

✔️ECU Programming: More Control over ECU

  • Replace the existing software / firmware in the ECU.
  • Program the blank ECUs.
  • Update the ECU software to the latest version.
  • Fix software-controlled driving performance and emission issues.
  • Online ECU programming is compatible with all-chassis Benz and BMW (need no special connectors on BMW F&G chassis).


*Applies only when the vehicle is connected with the VCMI box. Connecting to an external battery charger is necessary for successful operation.

✔️ECU Coding: Change Pre-set Car Settings

  • Reprogram the adaptive data for newly-installed ECU module after repair or replacement.
  • Fix issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, and Durability of mechanical parts.
  • Activate higher-level car functions, like making the pointer move and perform self check etc.
  • Disable the unneeded car functions such as the Automatic Start/Stop etc.
  • Online ECU Coding is compatible with VW/Audi, Seat, Porsche, Renault, BMW and Benz models.


*Check the "cheat sheet" for your car first. May NOT be available for the vehicle that hasn’t got the feature in its configuration.

Make Your Work 200% Easier.

The diagnostic scan tool for all vehicles-- Autel MaxiSys Ultra sets an epic standard for what an diagnostic tool can be in 2024. We try to list all instructions and all possible difficulties you may encounter during the diagnostic process, and have integrated them into 6 parts:

Repair Assist

  • It directs you to find the fault through its step-by-step guidance based on the trouble code. Compared with the traditional troubleshooting scan tools which require you to make time & energy-intensive work like preparing wiring diagrams and measurement tools etc., this powerful smart function module JUST needs you to follow the steps to fix issues. No worries! All procedures are verified by professional technicians.


Repair Tips

  • It displays a range of diagnostics including the information needed to clear the faults, and the repair steps are provided in text and video.


Component Measurement

  • It guides us to measure components by connecting with and using the oscilloscope, to display and analyze the waveform of electronic signals generated from your vehicle.


Relevant Cases

  • Here you can check the repair processes relevant to specific vehicles and faults in real world. It's based on cases from millions of successful repairs.


Yes, Ultra will be your diagnostic expert. You’ll have the mind-blowing experience like following an expert to fix every hassle you’d meet while repairing.

Autel Scanner MSUltra-2

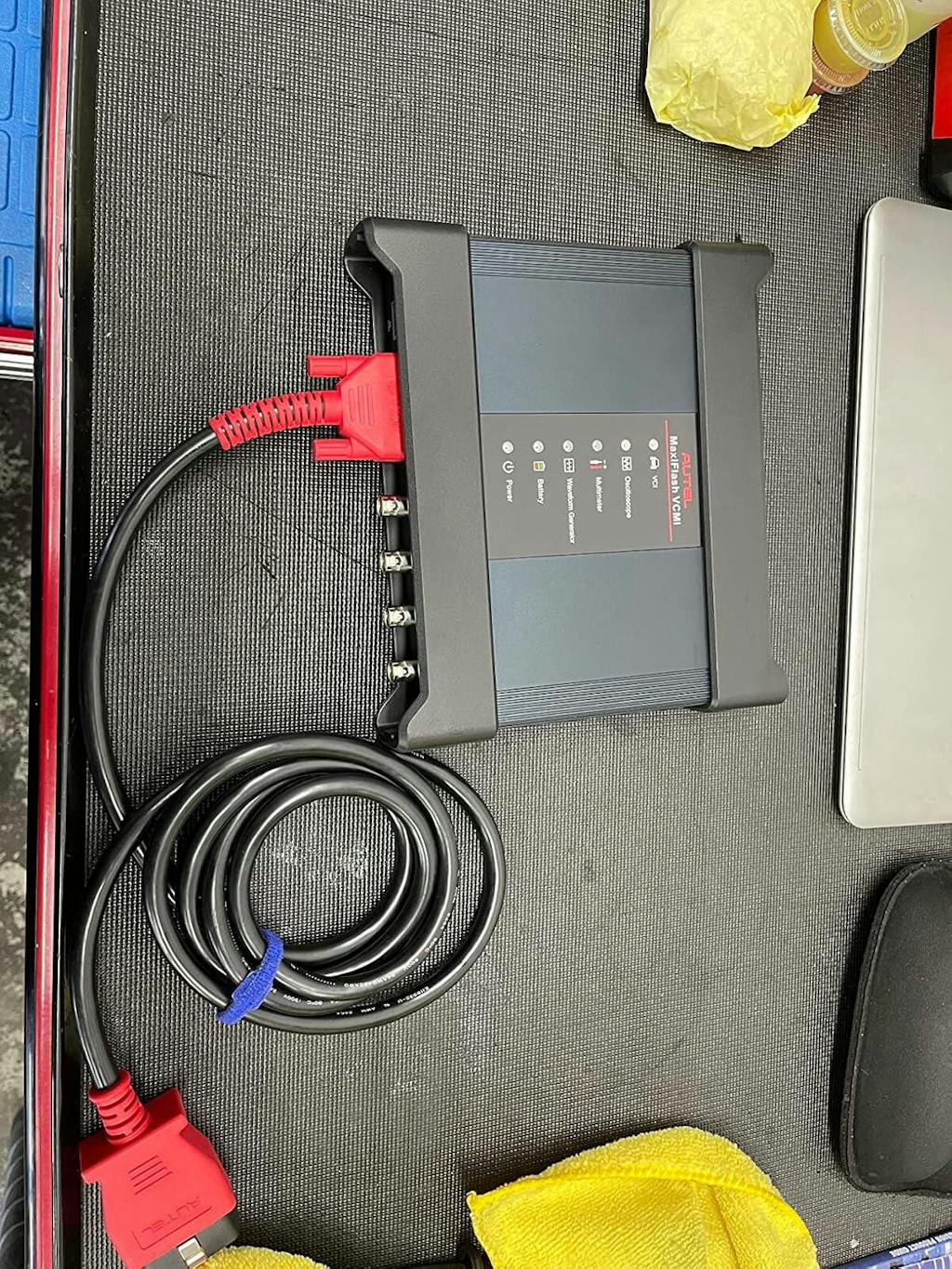

5-IN-1 VCMI: Manage More Repair Scenarios

1. NEW Vehicle Communication Interface:

  • Support D-PDU / J2534 / RP1210 diagnostic protocols to cover more passenger cars and commercial vehicles.
  • Support new DoIP / CAN FD protocols to provide a significant speed increase above classical CAN networks, covering U.S., Asian and European markets over 110 brands, and is continually updated.
  • As a Pass-Thru Device, the cost-effective access to data and OE programming downloads from vehicle manufacturers.


2. The 5-in-1 Combo of Wireless VCI, 4-channel Oscilloscope, Multimeter, CAN BUS Tester, and Waveform Generator:

  • Wireless VCI: transmit vehicle data to the diagnostic tablet wirelessly up to 164 ft./50m communicating range; transferring speed increases by 30%.
  • NEW 4-channel Oscilloscope: faster bandwidth 20MHz / sample rate 80MS/s; easier operation with the built-in preset guided test.
  • Multimeter: measure voltage, current, and resistance.
  • CAN BUS Tester: as a universal diagnostic tool to analyze, monitor, and troubleshoot CAN bus systems.
  • Waveform Generator: produce electrical signals and analyze vehicle performance by varying various waveforms frequencies.


3. More Test Component Combination:

  • OBDII channel detection / DLC pin location and direct measurement.
  • Protocol CAN testing / advanced triggering / auto-scale zooming.
j2534 reprogramming tool-10  diagnostic scan tool for all vehicles-8  snap on tools-9  escaner automotriz professional-7

Print via Wi-Fi. Multitasking Split-screen.

If you want to keep a record of any faults for future reference you’ll get amazed by Ultra’s Print via Wi-Fi. Simply connect this diagnostic scanner to the Wi-Fi network that your wireless printer is on, you can print the diagnostic data from any location. And thanks to its split-screen navigation, you can manage multiple applications at the same time. This way you can fix a particular part of the engine and meanwhile to monitor the effects it has on other parts.

Print via Wi-Fi. Multitasking Split-screen.

If you want to keep a record of any faults for future reference you’ll get amazed by Ultra’s Print via Wi-Fi. Simply connect this diagnostic scanner to the Wi-Fi network that your wireless printer is on, you can print the diagnostic data from any location. And thanks to its split-screen navigation, you can manage multiple applications at the same time. This way you can fix a particular part of the engine and meanwhile to monitor the effects it has on other parts.

Expand Functions. Win More Business.

This j2534 reprogramming tool comes in a complete package including a Docking station, Scope test lead, Multimeter probe, Clipper cable, Multimeter test lead, Large dolphin chip, Small crocodile clip among many others to help you get the work well done. It also can be combined with compatible functional modules (sold separately) to help grow your customer base: 1) MaxiBAS BT506 Battery Tester; 2) Endoscope MV105 & MV108: inspect areas inaccessible, etc.

Remote Expert: Get Help Miles Away.

The “coming soon” Remote Expert function has realized the reality that a mechanic can diagnose an abnormal vehicle that is thousands of miles away. You can easily get connected with an expert who is NOT physically present to help you complete complex repairs even brand-specific coding, and programming works. Or you may join the independent team of Remote Expert to help others and earn some revenue. This works on GM, Mercedes, BMW, Chrysler, etc.

  • Maxisys Ultra User Manual.pdf   Download
  • MaxiSYS Ultra Sales Flyer.pdf   Download
